Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionIESBIM
1103,0001 Opening
1154,0001 Opening
2403,0002 Openings
2504,0002 Openings

Key Features

The collection has been renewed, the new lighting sources and treatments adopted make these products highly reliable and able to offer great quality assurance. MEDIO offers high performance and lighting power, it is ideally suited for uplighting important surfaces in terms of width and height and tall trees with large branches. Its thickness is quite contained and the product has a minimal protrusion from the ground or wall surface. The family has been enriched with the Full Inox version that provides even greater resistance to scratching and foot traffic.

Applications

Distribution

Specification

Body and closing ring made of die-cast EN 44100 aluminium alloy. Protection with anodizing treatment, epoxy powder base coating and polyester painting. A4 stainless steel screws. IP68 protection rating with Full Dry system preventing condensation inside the fitting. Nylon sleeve to be ordered separately. Installation in sleeve set in concrete, with a 20-30 cm gravel drain bed. Only an IP68 rated connection to power supply unit can guarantee the IP68 protection rating to the luminaire.

Copy specification to clipboard

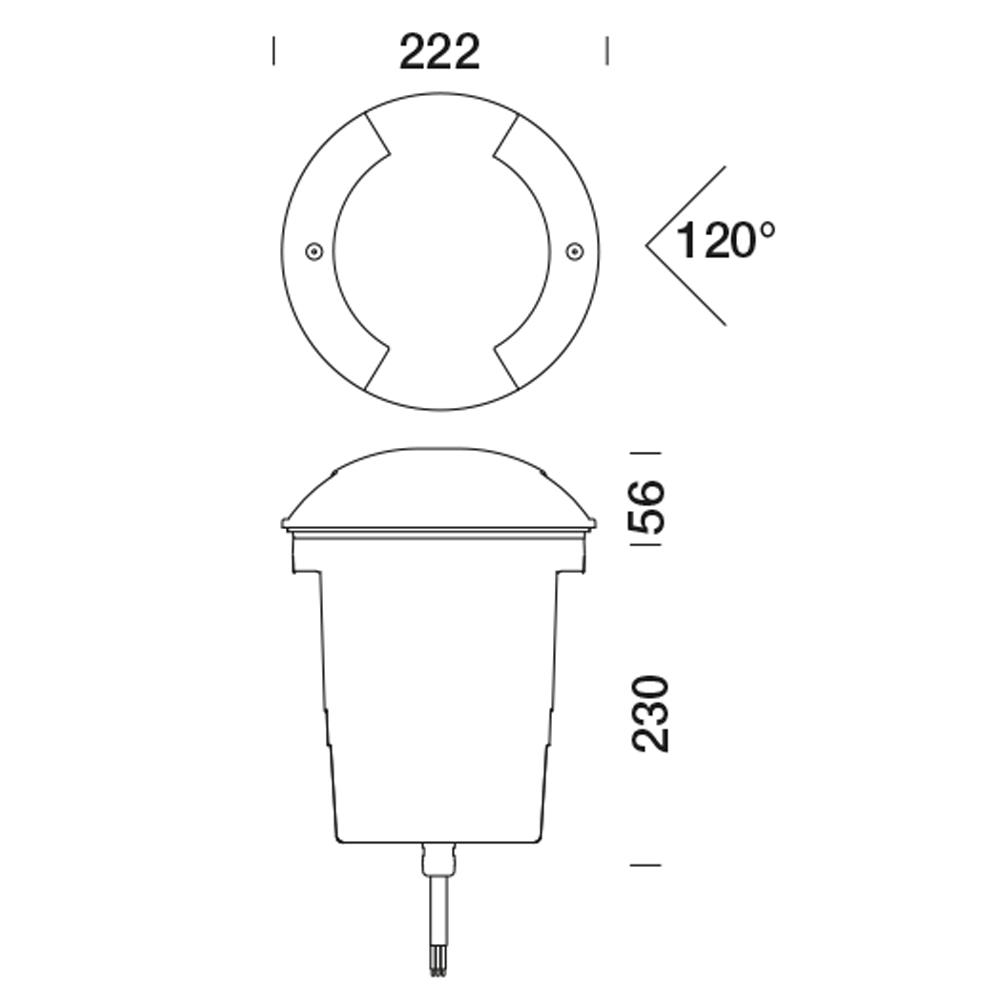

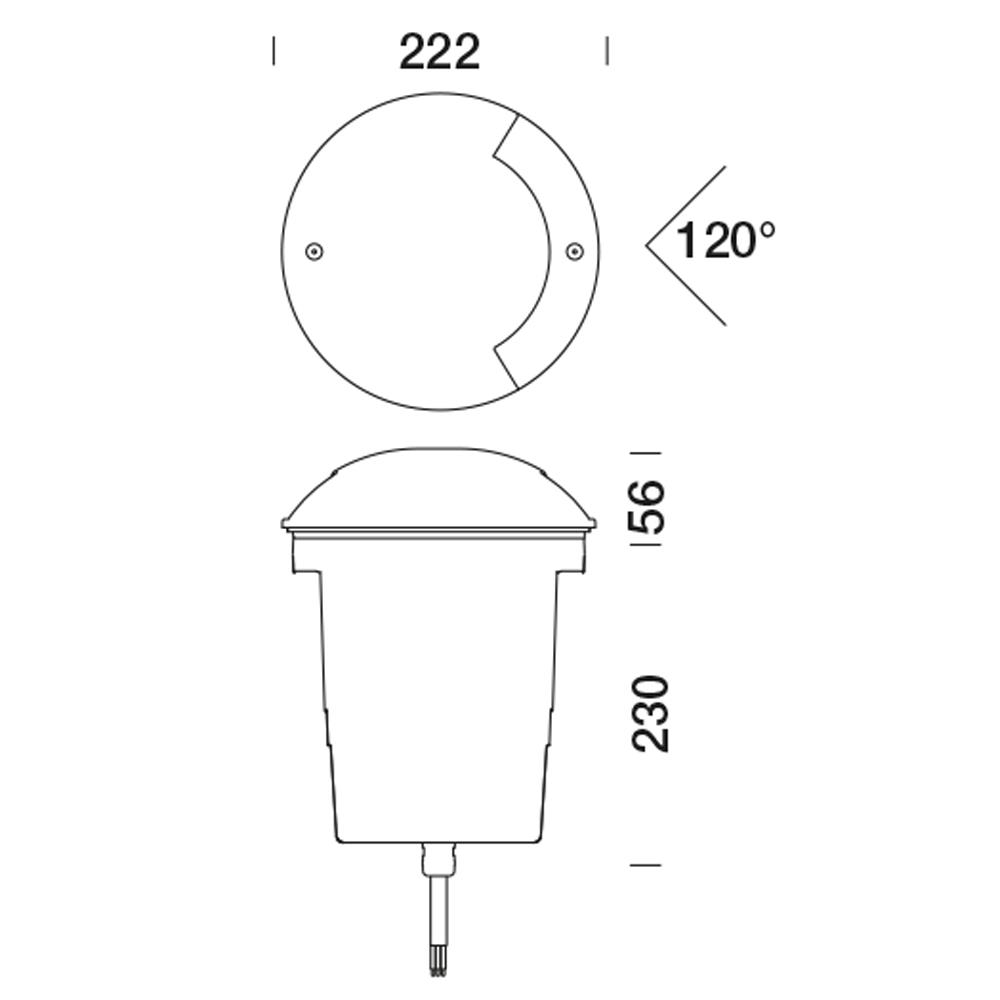

Dimensions

Feature

Lighting Design

Holophane offer a comprehensive and professional lighting design service. Our experienced and qualified lighting designers are on hand to provide full project support ranging from simple calculation plots to full complex lighting designs.

Feature

Product Matching


Holophane’s history lies in it being the first company to give practical application to the principles of the prism as the ultimate means of light control, harnessing and redirecting the output of light source by prismatic means to provide the best in cost effective, efficient lighting.

Feature

More light, less Investment


We believe that our products are better, more cost-effective and longer-lasting. And we'd like you to put that to the test.
