Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionIESBIM
3,1153,00028°
3,2404,00028°
2,1003,00045°
2,1854,00045°
2,7003,000
2,8004,000
2,5853,000Elliptical
2,6904,000Elliptical

Key Features

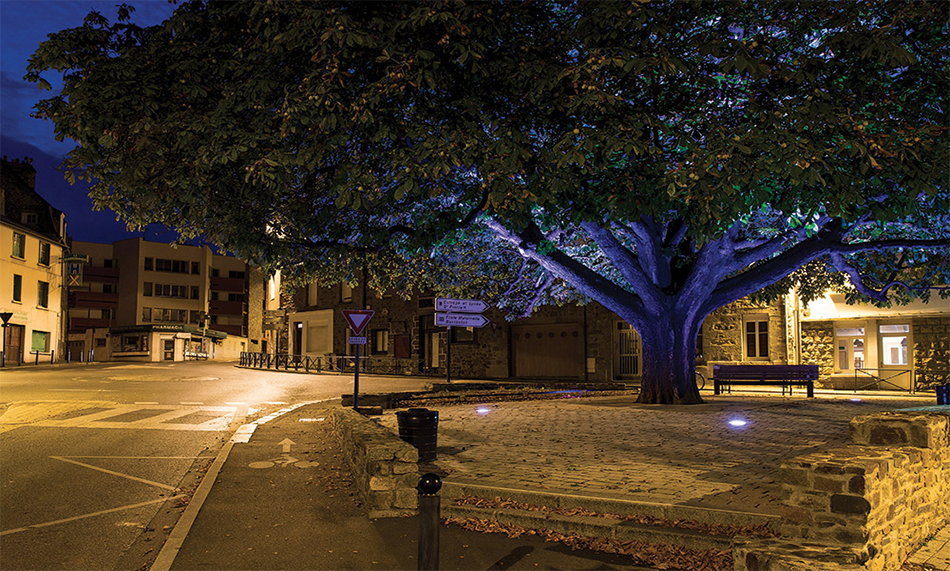

ATLANTIQUE can light large spaces and surfaces. For these features, it also particularly works well in parks, gardens and for lighting large trees.

Applications

Distribution

28°
45°
9°
Elliptical

Specification

Die-cast body and closing flange made of aluminium alloy with very low copper content, extremely robust. A4 Stainless steel screws. IP68 Degree of protection with Full Dry system which avoids condensing inside the product. Outer casing Installation cast in concrete with a 20-30 cm gravel drainage bed. Only an IP68 connection to the power supply can guarantee the same protection to the appliance. aluminium outer casing to be ordered separately. The product is subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and finally fixing. Subsequently the product is painted by performing a double pass in-line process, which allows you to generate a single thick protective layer which then generates barrier against atmospheric agents and UV rays. This allows to achieve corrosion resistance performance in salt spray.

Copy specification to clipboard

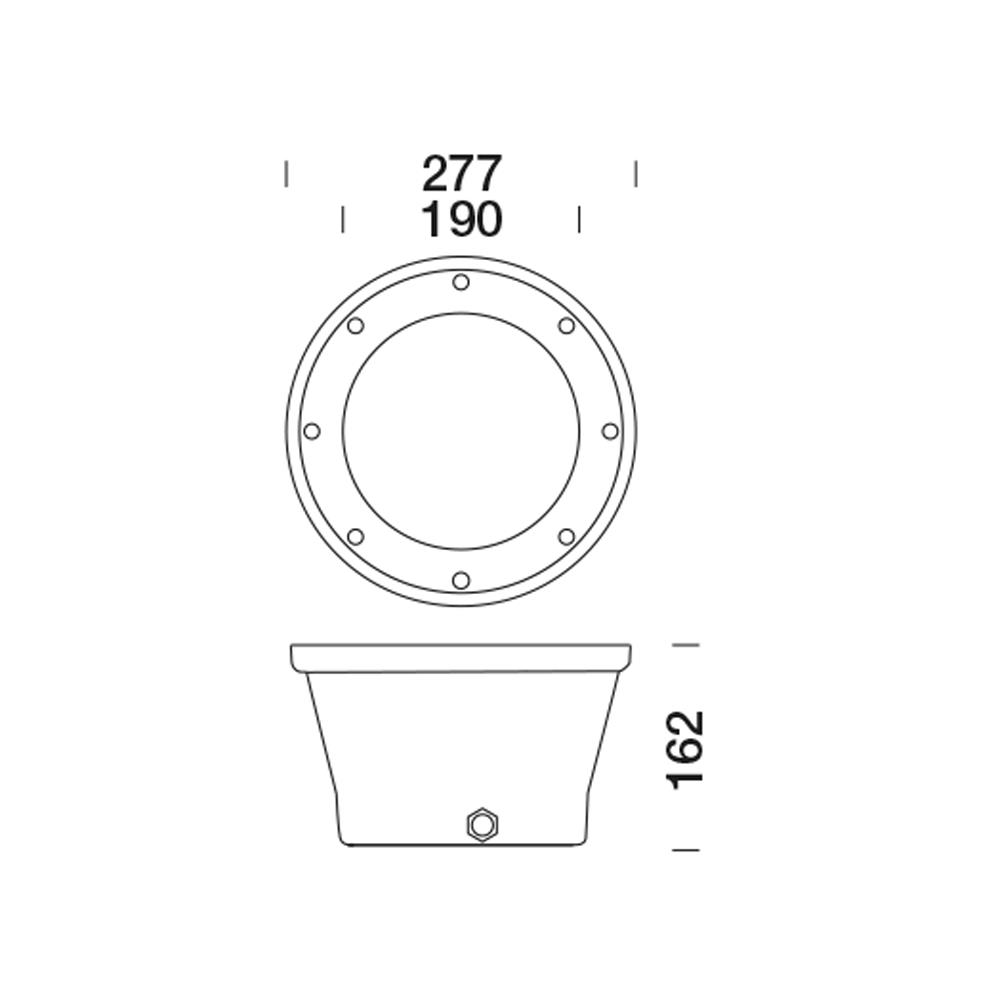

Dimensions
