Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionIESBIM
3,0803,00038°
3,2004,00038°
2,5103,000Street optic
2,6104,000Street optic

Key Features

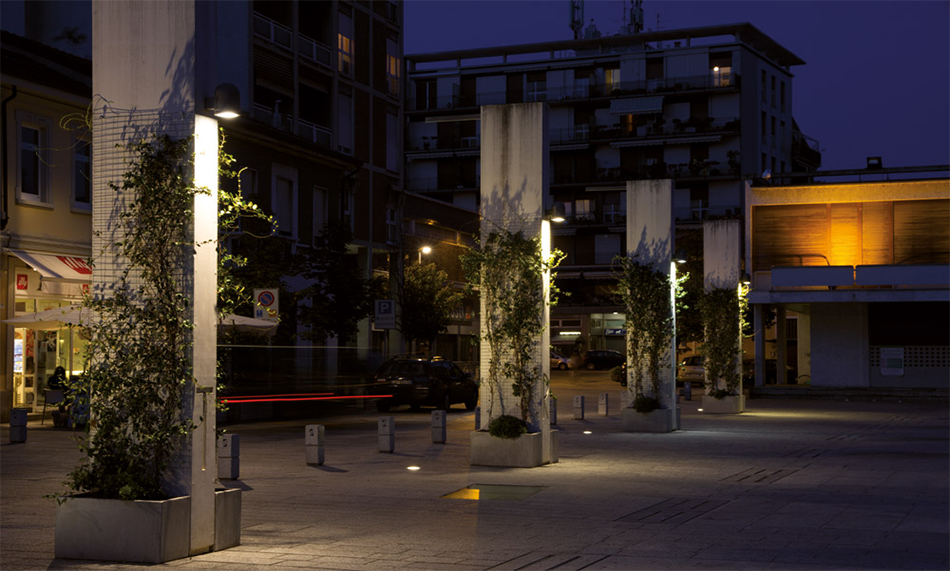

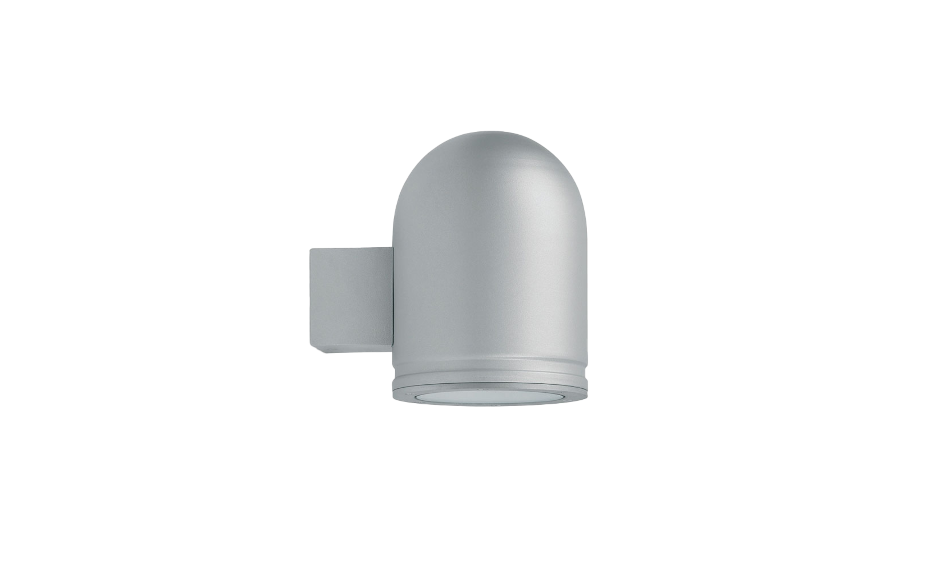

A cylinder that applies on the façade and on the pole. The wall lights are available in street optic version and rotosymmetric version. BALI is perfect for arcades, gardens, private streets, but also for parking, cycle tracks and squares. They can normally be installed two luminaires each pole up to 4 meters in height.

Applications

Distribution

38°
Street optic

Specification

Aluminium body, corrosion resistant. Die-cast aluminium locking flange, corrosion resistant. Protection by means of iridite, epoxy powder base coating and polyester painting. A4 stainless steel screws. 12mm flat tempered glass cover.

Copy specification to clipboard

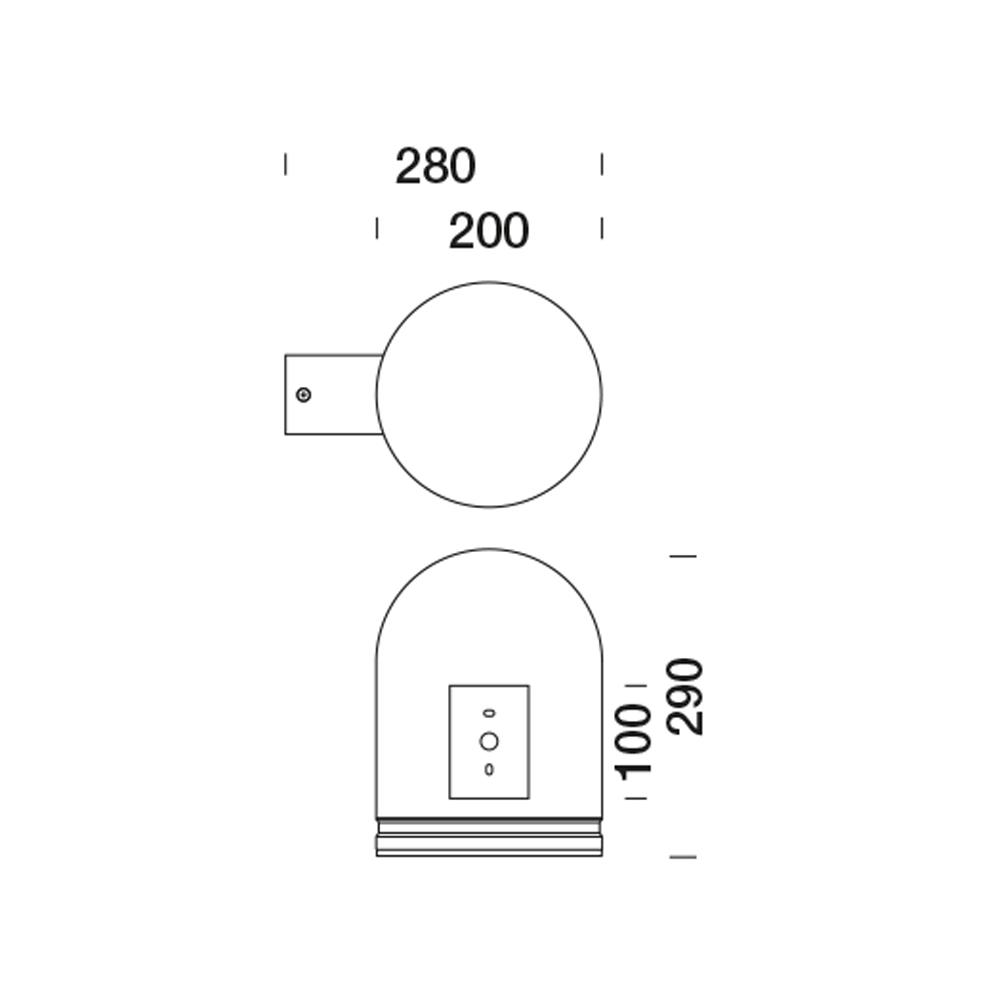

Dimensions

Feature

Lighting Design

Holophane offer a comprehensive and professional lighting design service. Our experienced and qualified lighting designers are on hand to provide full project support ranging from simple calculation plots to full complex lighting designs.

Feature

Product Matching


Holophane’s history lies in it being the first company to give practical application to the principles of the prism as the ultimate means of light control, harnessing and redirecting the output of light source by prismatic means to provide the best in cost effective, efficient lighting.

Feature

More light, less Investment


We believe that our products are better, more cost-effective and longer-lasting. And we'd like you to put that to the test.
