Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionPower (W)IESBIM
18,2474,000Forward Throw121
21,2424,000High Beam Symmetric121
19,9474,000Long & Narrow121
23,0564,000Forward Throw158
27,3414,000High Beam Symmetric158
25,1824,000Long & Narrow158
28,0194,000Forward Throw199
33,0994,000High Beam Symmetric199
29,4384,000Long & Narrow199
33,5784,000Forward Throw233

Key Features

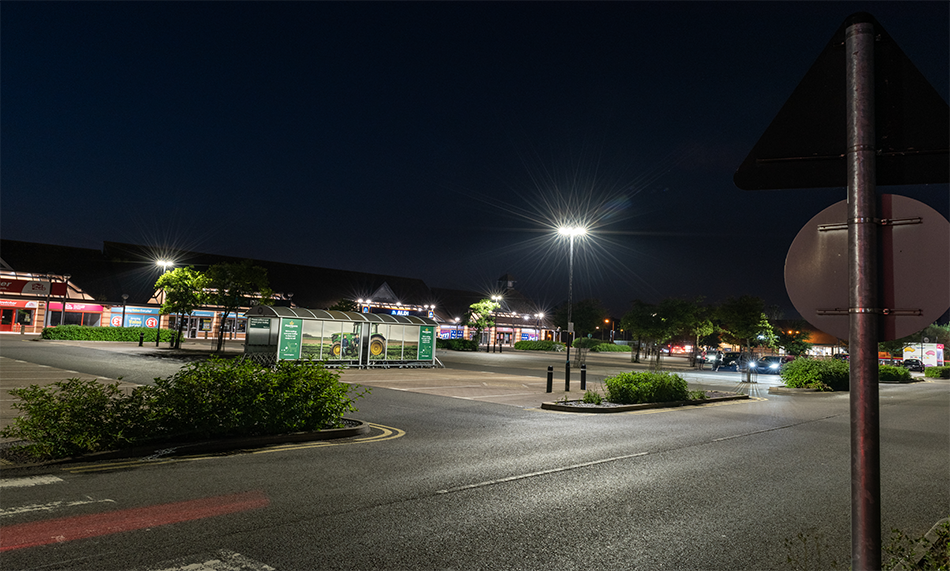

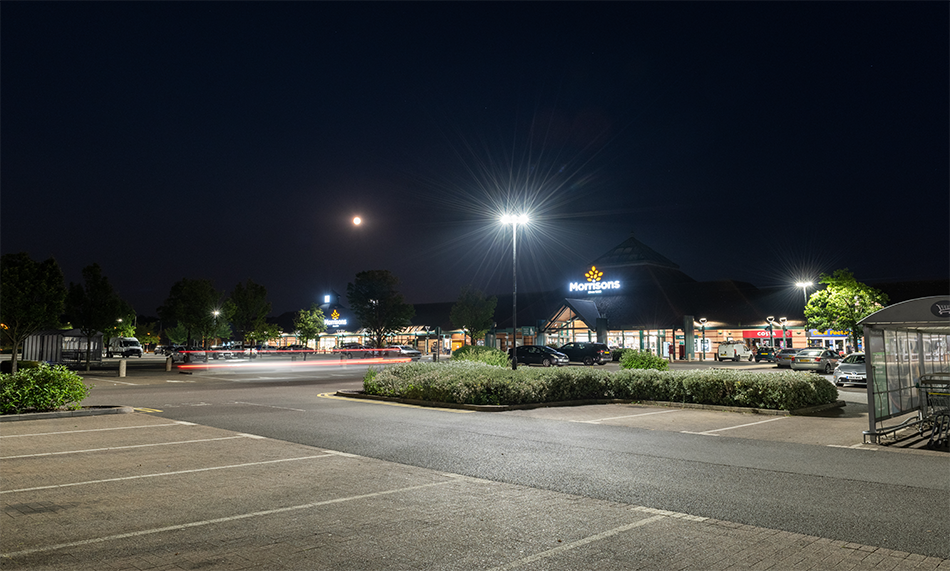

The CityMax Large luminaire has been engineered as a retrofit solution for existing 250W, 400W & 600W SON & metal halide installations typically seen in retail parks, amenity areas, town squares and car parks. With the latest in high efficiency LED technology and glass optics we have created a highly efficient LED light engine system that delivers energy savings, low glare appearance and exceptional visual acuity.

  • Engineered to deliver exceptional thermal management via conduction and convection which ensures heat is taken away from the light engine to deliver a system life of 100,000 hours L70B50.

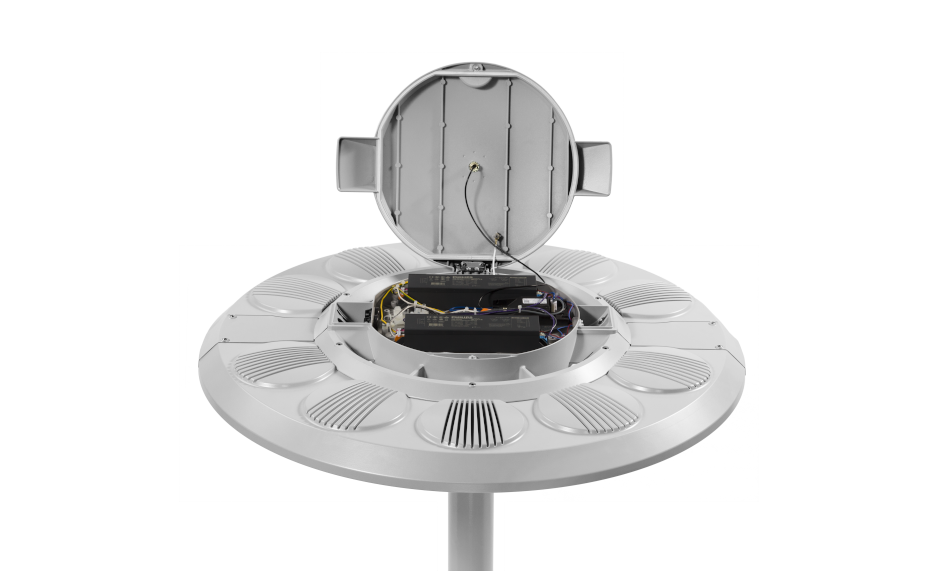

  • The inner housing contains the electronic drivers and ‘smart’ control nodes that deliver the complete controllable lighting solution. Access to the housing is tool-less allowing ease of access during installation and for maintenance in the future.

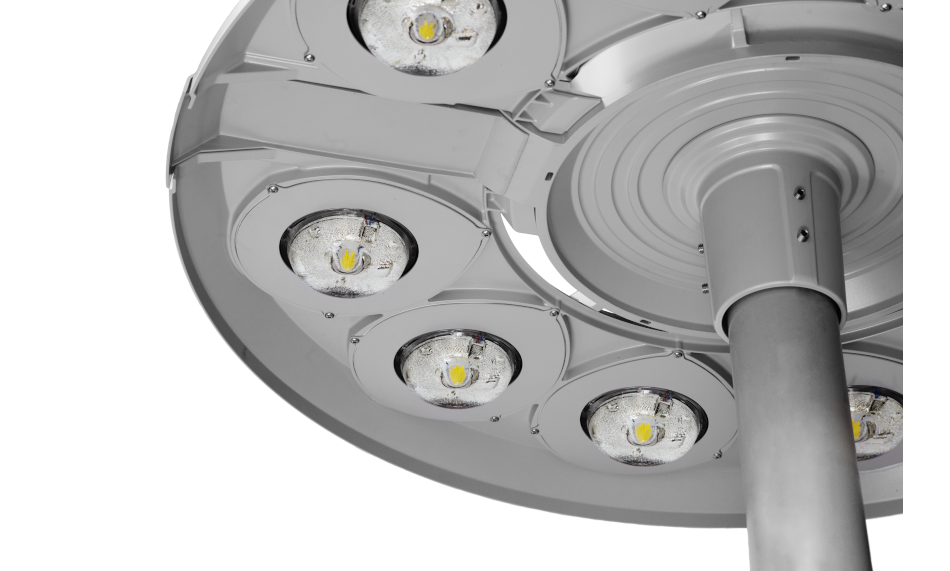

  • Available with either 6, 8 or 10 optical pods to deliver the desired distribution and lumen package. Recessed within the housing to mitigate upward light.

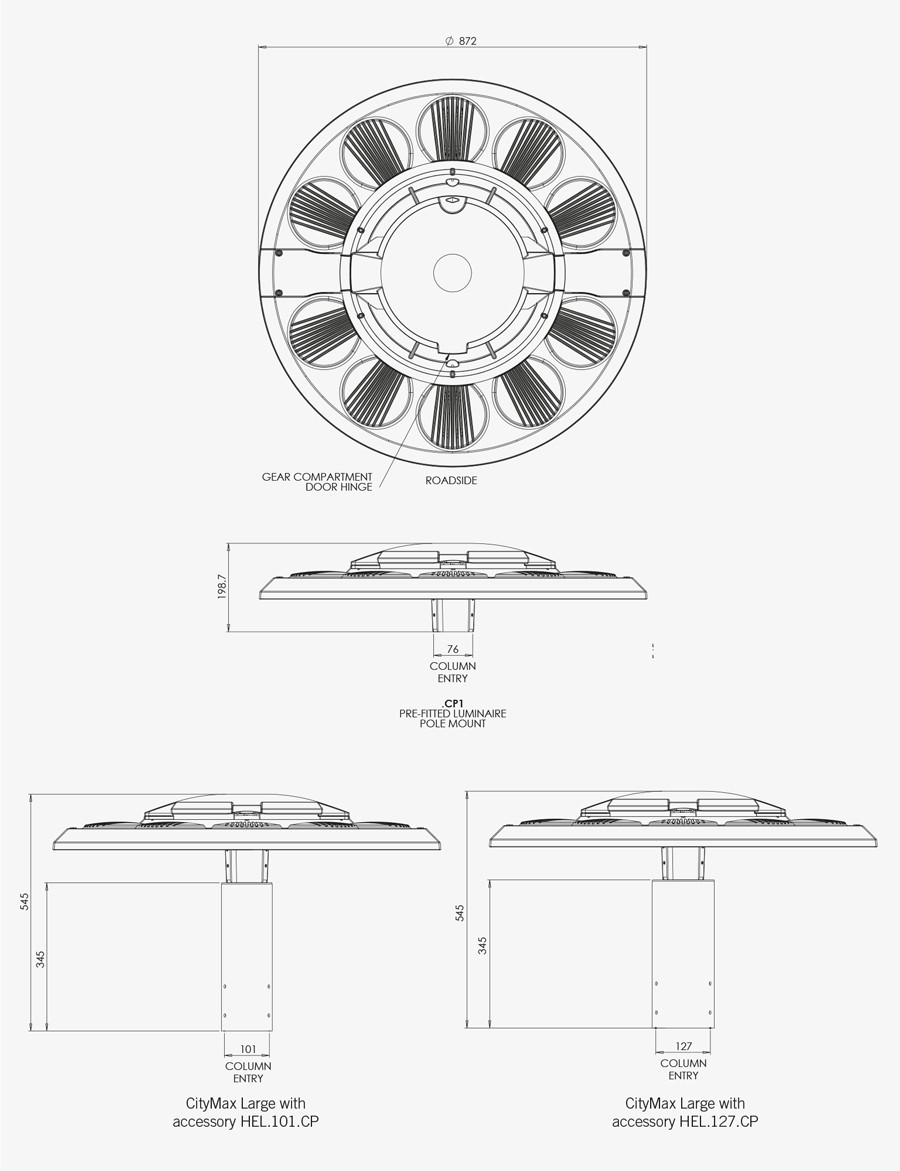

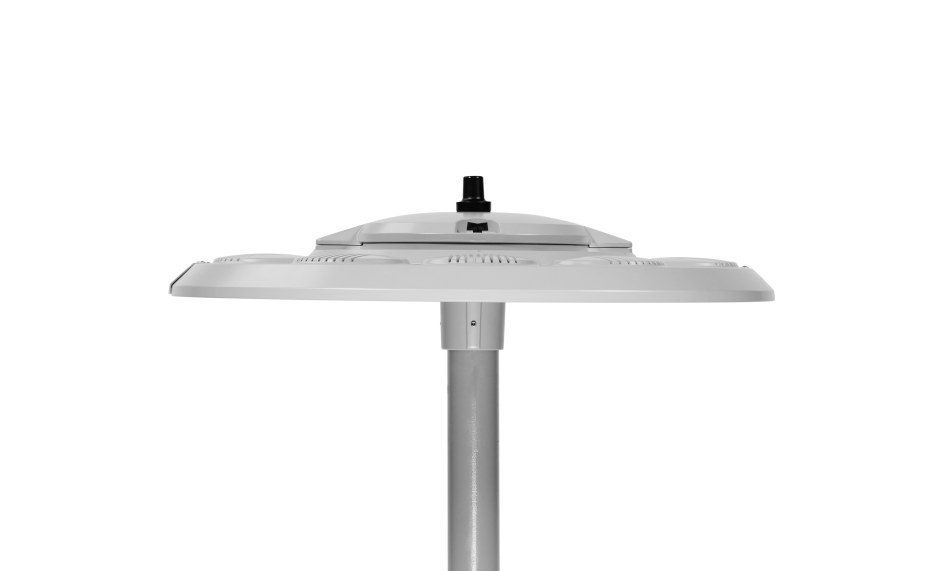

  • Direct post top mount (76mm, 101mm* or 127mm*) ensures ease of retrofit to existing columns. Also available as part of a complete column and luminaire solution.
    *Accessory required





The luminaire shall consist of six, eight or ten prismatic glass refractors manufactured from borosilicate glass to ensure longevity and minimise dirt depreciation. Each glass lens houses an array of LEDs and creates individual optical pods. Each optical pod is housed in a ventilated chamber and finned housing manufactured from aluminium to maximise heat transfer.

The electrical housing consists of an aluminium body containing the drivers, electrical termination and has been developed to ensure ‘smart’ control devices can be integrated. The luminaire chassis and electrical housing utilises all three heat transfer mechanisms of conduction, convection and radiation to ensure that the LEDs and electronic drivers are thermally managed.

3000K or warmer must be selected for IDA dark sky certification.
