Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionPower (W)Efficacy (llm/W)IESBIM
24,6792,700Asymmetric202121
21,3922,700Asymmetric202121
16,1672,700Asymmetric202121
17,9512,700Back Light Control202121
16,7052,700Back Light Control202121
25,0472,700Forward Throw202121
21,5462,700Forward Throw202121
20,7982,700Forward Throw202121
25,2202,700Forward Throw Extra202121
21,1502,700Forward Throw Extra202121
22,2472,700Forward Throw Extra202121
18,1132,700Left Corner Cutoff Optic202121
17,9592,700Left Corner Cutoff Optic202121
26,3362,700Long & Narrow202121
24,1942,700Long & Narrow202121
19,9292,700Long & Narrow202121
18,1132,700Right Corner Cutoff Optic202121
17,9592,700Right Corner Cutoff Optic202121
25,7702,700Symmetric202121
18,7302,700Symmetric202121
12345678910...

Key Features

With its exceptional 'finned' thermal management system, D-Series is capable of delivering over 100,000 hours LED module life. Offering a wide range of lumen packages and optical distributions, D-Series delivers optimised lighting application designs.

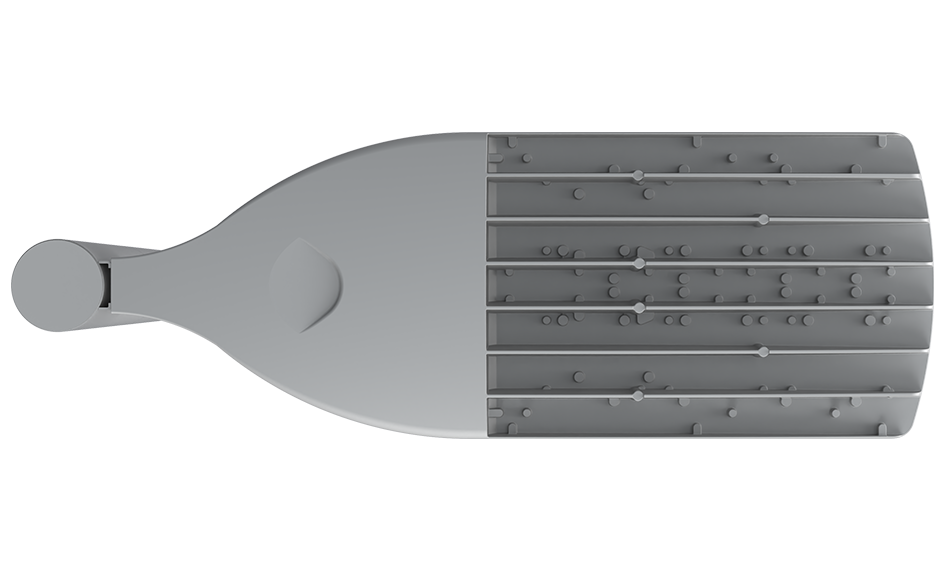

  • The D-Series's diecast aluminium housing acts as its primary heat sink. Its longitudinal fins employ conductive cooling techniques to dissipate heat away from the key LED components and driver that extends the life of the luminaire.

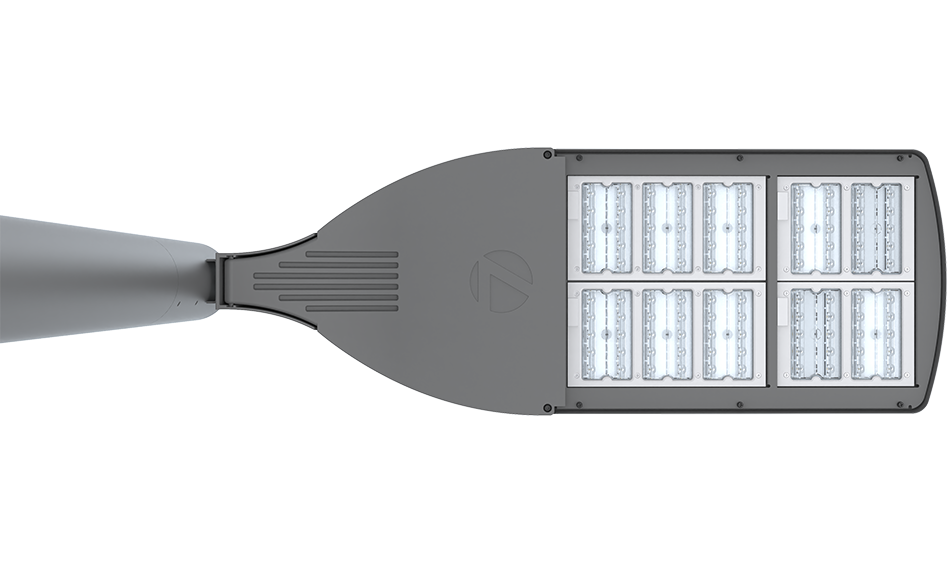

  • Light engine(s) consist of either 20, 30, 60, 80 or 100 high efficacy LEDs (subject to chosen configuration) mounted to a metal-core circuit board to maximize heat dissipation and promote long life.
  • Offering lumen packages ranging from 2,000lm to 36,000lm with efficiencies of up to 142 lpw (Lumens Per Watts) in colour temperatures of either 3000K or 4000K.
  • Three optimised distributions (asymmetric, symmetric and forward throw) delivered by quality LEDs and bespoke UV stabilised optics.
  • LED light engines with 0% ULOR ensuring night time friendly.
  • Available with DALI compatible driver and photocell options enabling dimming facility.

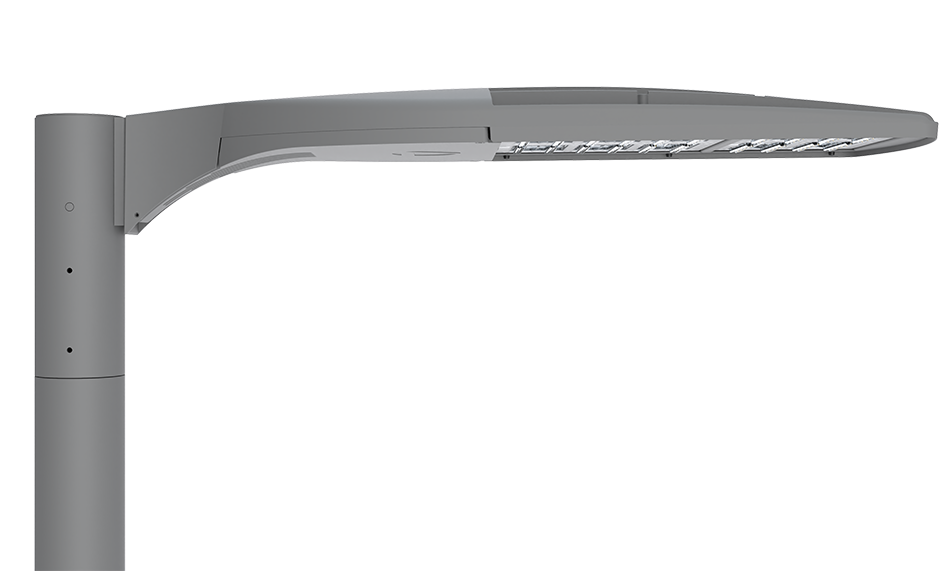

  • Fully integrated into Holophane standard column range.

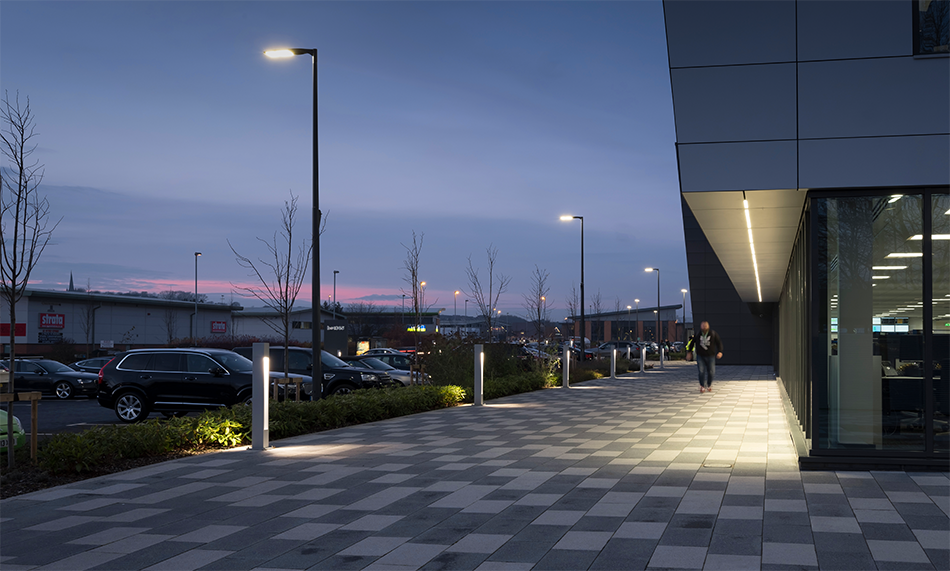

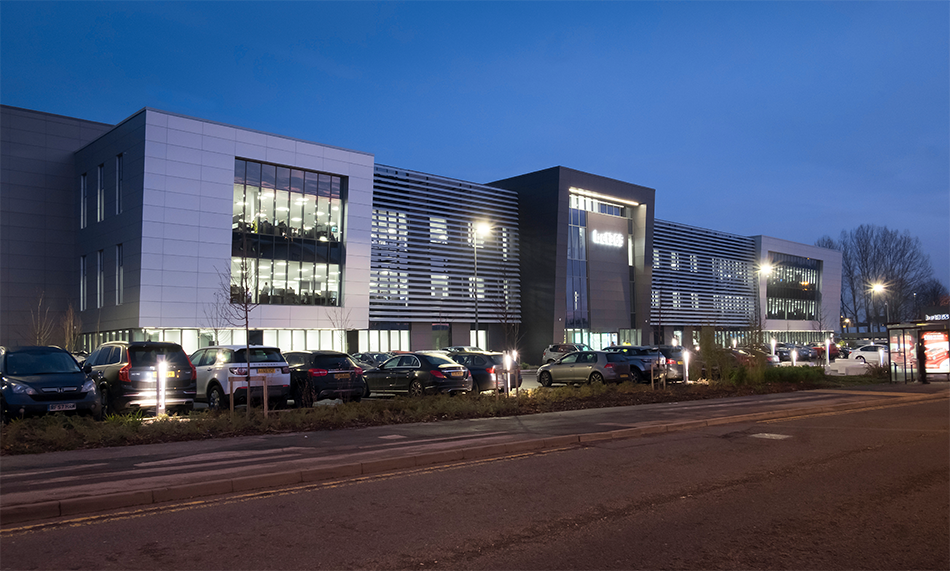

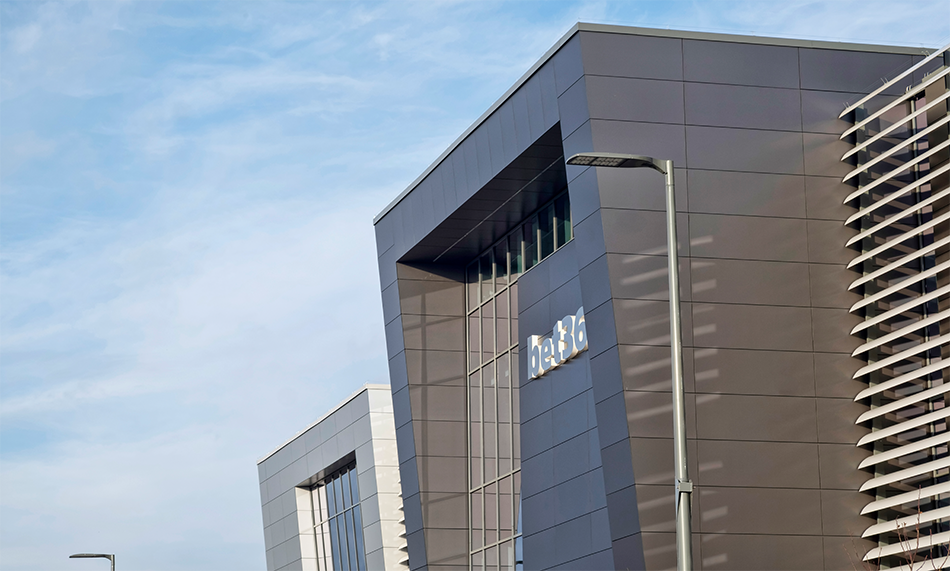

Applications

Distribution

Asymmetric
Symmetric

Specification

Single-piece die-cast aluminium housing, that conforms to EN1706 AC-46500, with integral heat sink fins to optimise thermal management through conductive cooling. LED modules are IP65 with individual lenses, and high grade aluminium housing to transfer heat away from the LEDs and dissipate through the finned housing for cooling. The LED driver is mounted in direct contact with the finned housing for cooling to promote low operating temperature and long system life. Housing is completely sealed against moisture and environmental contaminants (IP65). Installation is via the integrated mounting block and integral arm that facilitate a quick and easy installation.

3000K or warmer must be selected for IDA dark sky certification.

Copy specification to clipboard

Dimensions

Note: The specifications of the Holophane luminaire represents typical values. All descriptions, illustrations, ,drawings and specifications in the Holophane catalogue and website represent only general particulars of the goods to which they apply and shall not form part of any contract. The company reserves the right to change specifications at its discretion without prior notification or public announcement.
