Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionIESBIM
2503,000121°
2604,00013°
7503,00013°
7804,00013°
1,5003,00013°
1,5604,00013°
3,0003,00013°
3,1204,00013°
2,2603,00013°
2,3504,00013°
2603,00026°
2704,00026°
7703,00026°
8004,00026°
1,5403,00026°
1,6104,00026°
3,0903,00026°
3,2204,00026°
2,3203,00026°
2,4204,00026°
123

Key Features

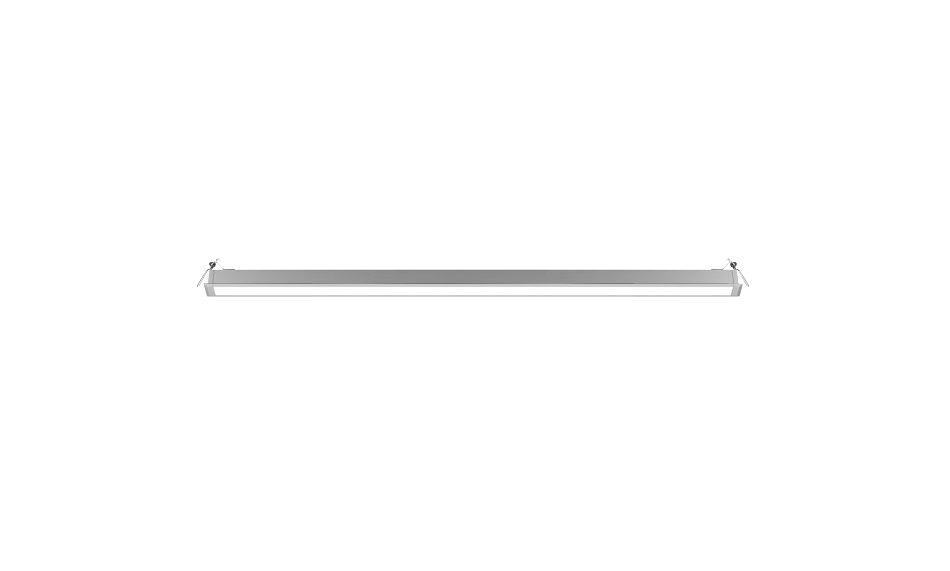

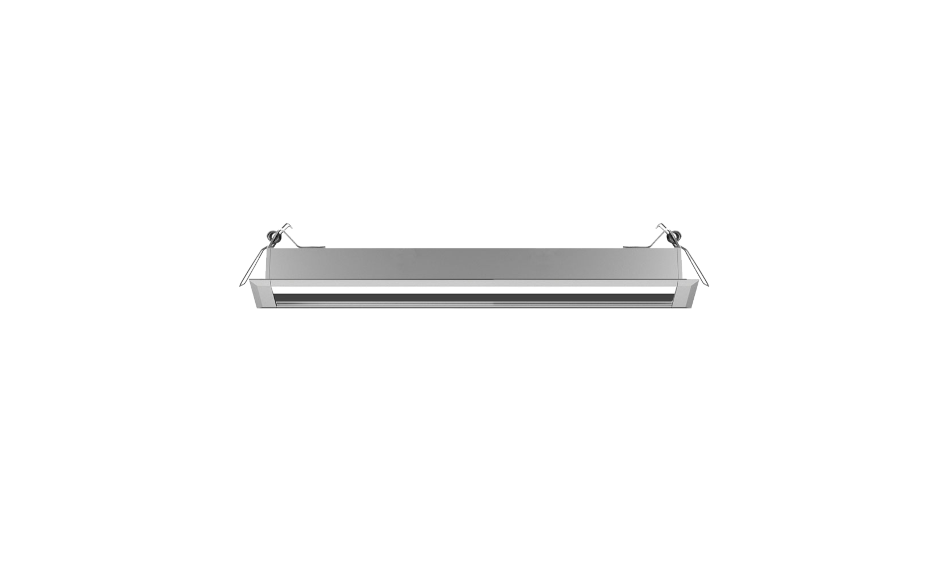

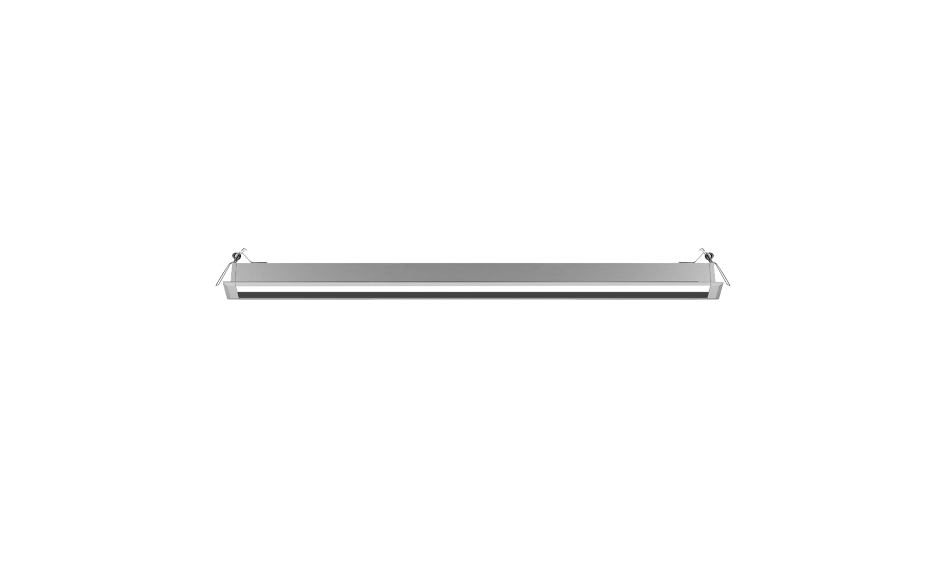

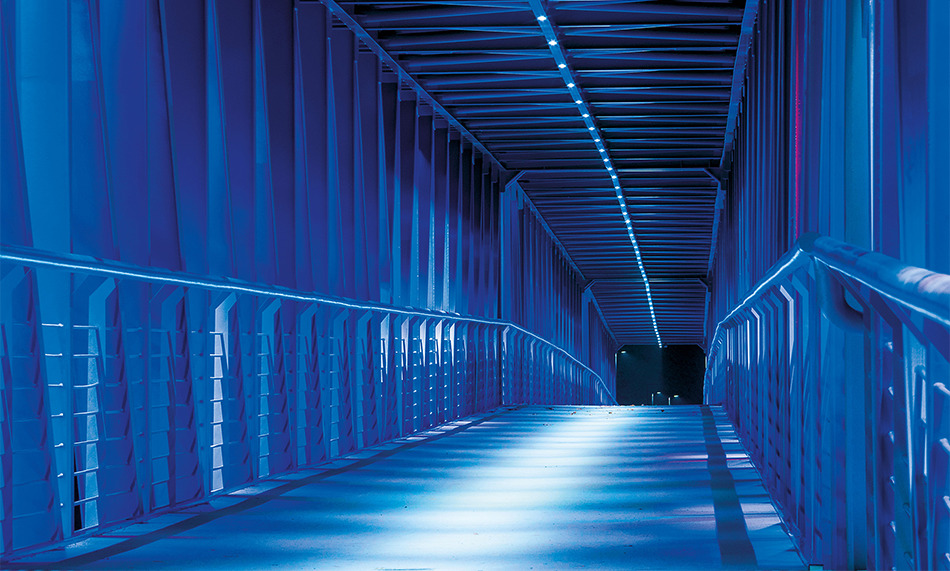

The applications are almost limitless: from the lighting of facades and big walls to the enhancement of monuments or architectures. A lighting system that is flexible and customizable, available in various sizes and powers. The stainless steel product can operate in immersion and out of water. MINI CORNICHE is developed as recessed walk over fitting or to light the surfaces from below and as a wall light.

Applications

Distribution

121°
13°
26°
40°
Diffuse
Elliptical

Specification

Extruded aluminium alloy body. A4 Stainless steel screws. External power supply with 12/24V DC constant-current transformer, to be wired in parallel. Gore valve to prevent condensing. The product is subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and finally fixing. Subsequently the product is painted by performing a double pass in-line process, which allows you to generate a single thick protective layer which then generates barrier against atmospheric agents and UV rays. This allows to achieve corrosion resistance performance in salt spray. Pre-treatment with atmospheric pressure plasma is carried out on the surface before gluing of the diffuser on Platek products. Built-in version installation cast in concrete with a 20-30 cm gravel drainage bed. Only an IP68 connection to the power supply can guarantee the same protection to the appliance.

Copy specification to clipboard

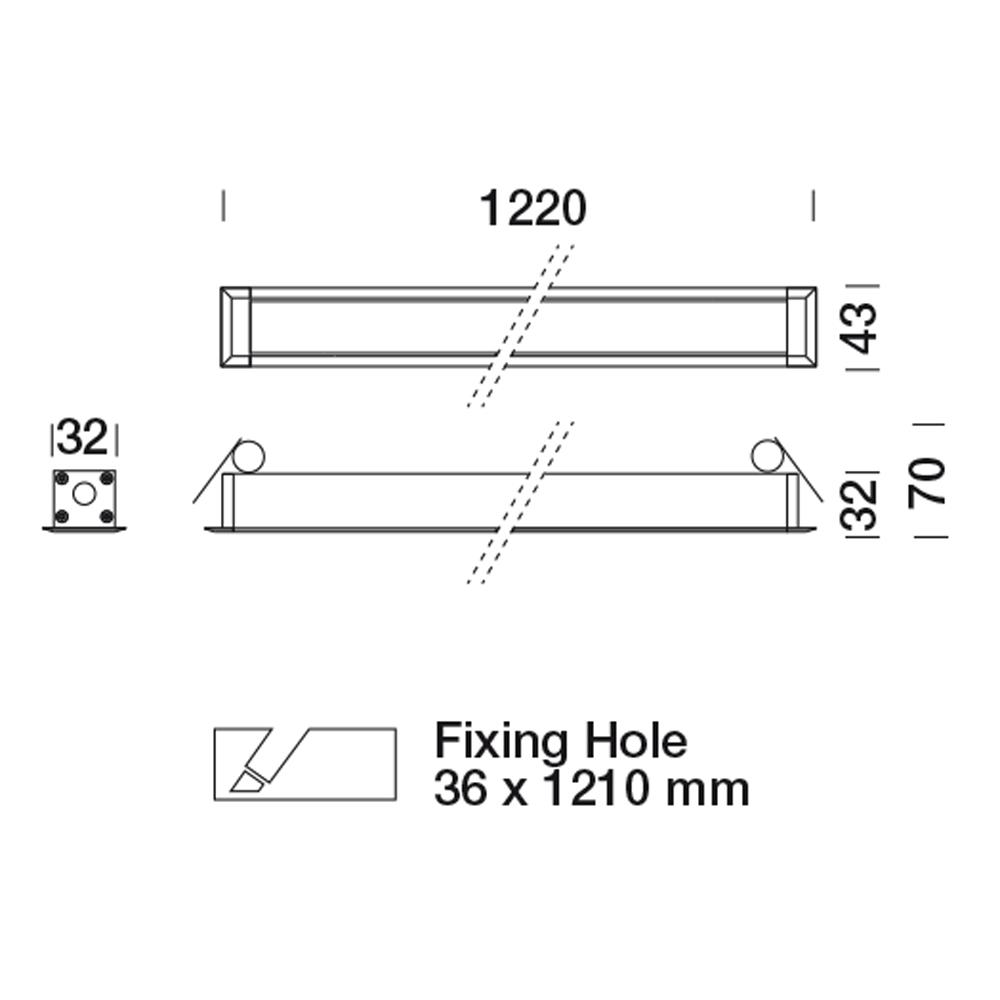

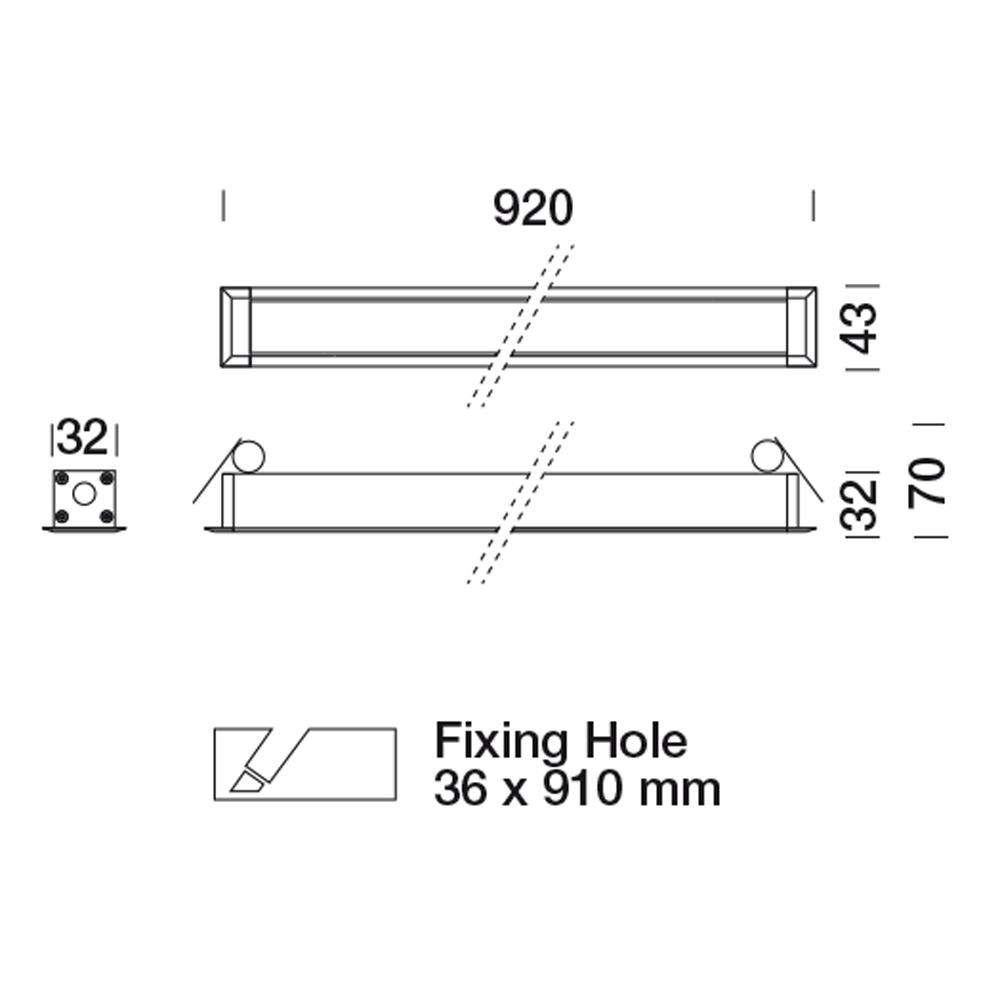

Dimensions

Feature

Lighting Design

Holophane offer a comprehensive and professional lighting design service. Our experienced and qualified lighting designers are on hand to provide full project support ranging from simple calculation plots to full complex lighting designs.

Feature

Product Matching


Holophane’s history lies in it being the first company to give practical application to the principles of the prism as the ultimate means of light control, harnessing and redirecting the output of light source by prismatic means to provide the best in cost effective, efficient lighting.

Feature

More light, less Investment


We believe that our products are better, more cost-effective and longer-lasting. And we'd like you to put that to the test.
