The New V-Max™

Photometry Filter

No photometry data found
Download all Photometry and BIM Data

Key Features

Retaining the unique patented design, inspired by the original award winning formula, V-MAX once again redefines what a marketing-leading road lighting lantern should be.

The new V-MAX has been designed with the latest in efficient High-power LED Technologies.

V-MAX is available in two LED variants:

LA (single-die LED)

• Best optical control

• High Lm/W

• High lumen output

LB (multi-die LED)

• Good optical control

• Highest Lm/W

• Highest lumen output

The new V-MAX is available with a large range of optical distributions that have been designed to suit a wide range of roadway classes from Residential through to Highways applications. Delivering both lighting efficiency and quality.

As standard V-MAX uses PMMA optics but are optionally available in Polycarbonate to achieve and IK10 rating.

Retaining the unique patented design, inspired by the original award winning formula.

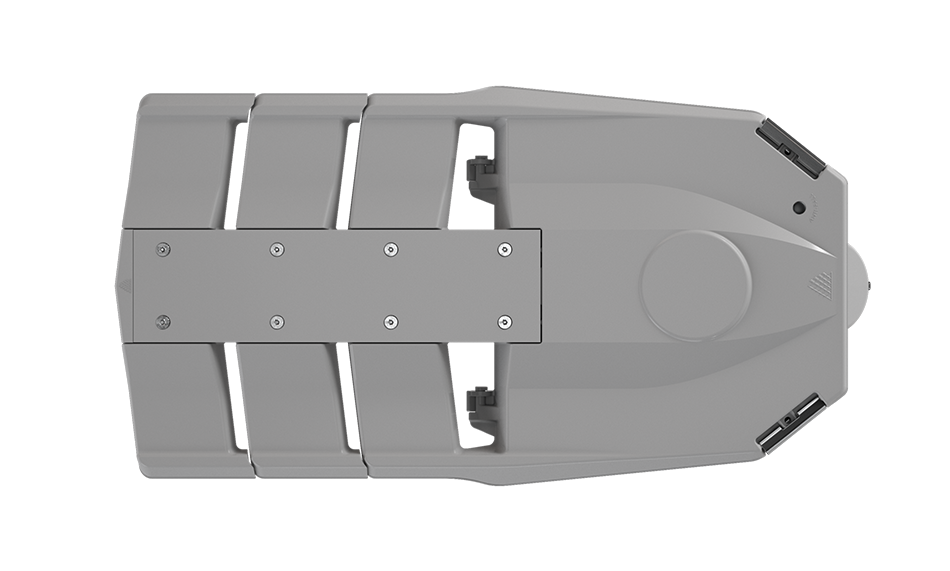

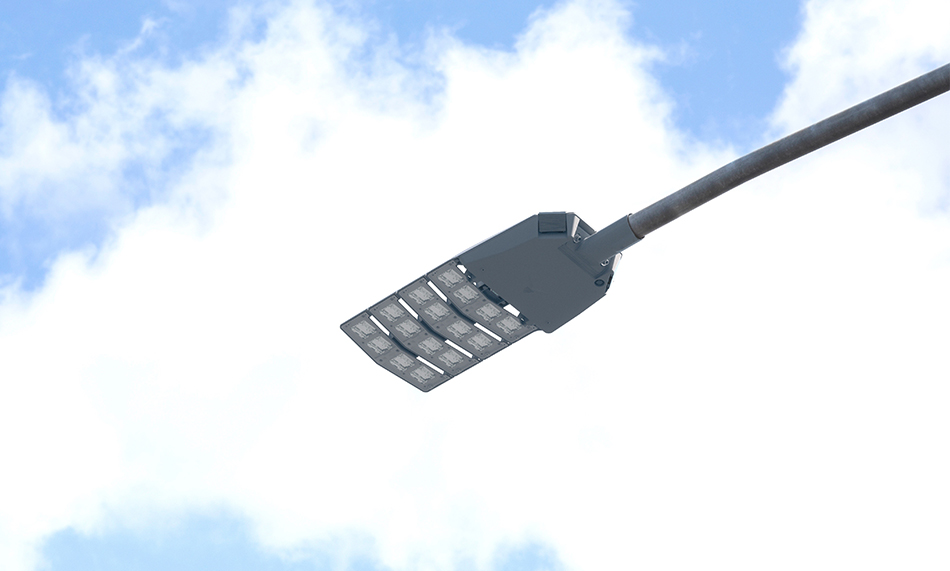

The new V-MAX has a modular design that has been developed with an approach that subdivides the luminaire system into individual modules (LED Chevrons) that are fully scalable, maintainable and upgradeable.

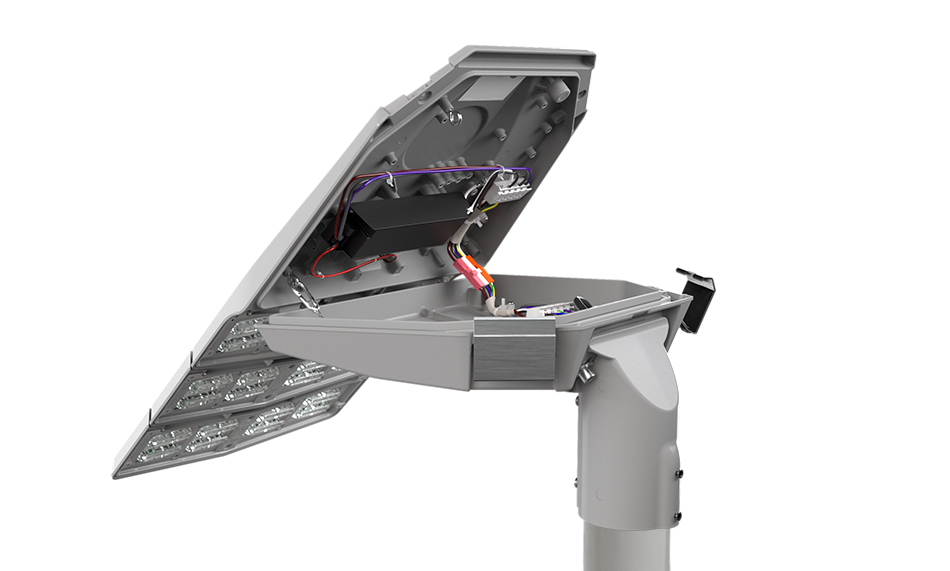

The new V-MAX has been designed from the ground-up with installers in mind. From the innovative hinge system, tool-less entry and other integrated safety features, V-Max ensures a fast, efficient and safe installation.

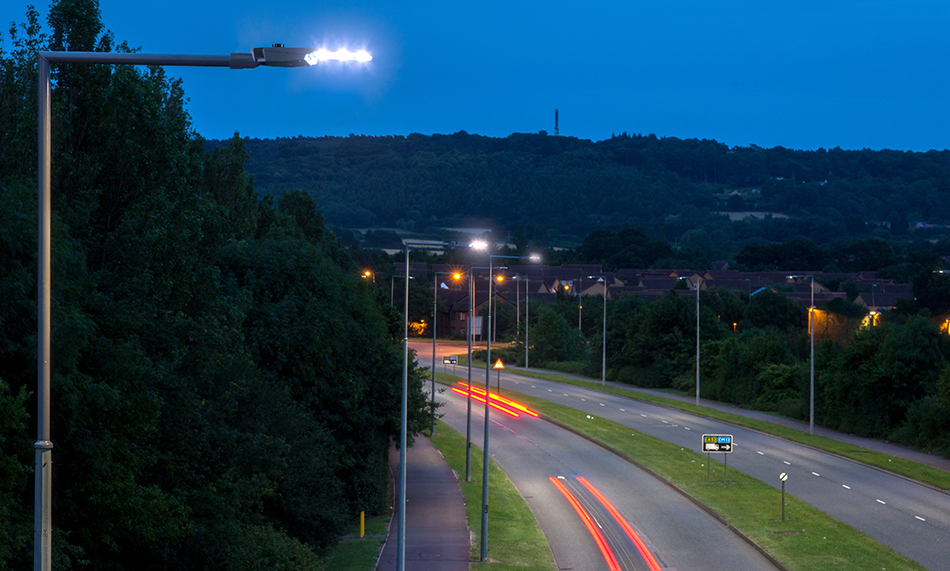

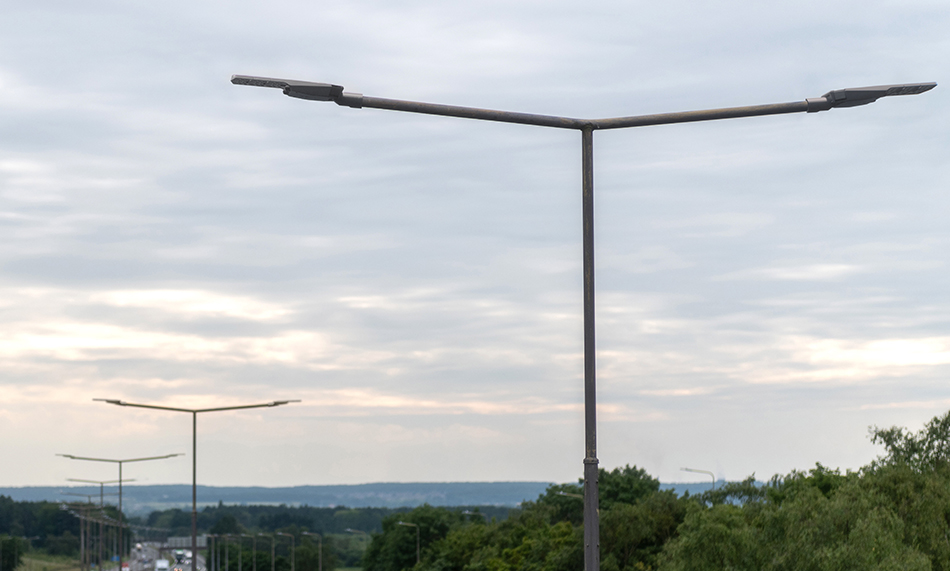

Applications

Distribution

Specification

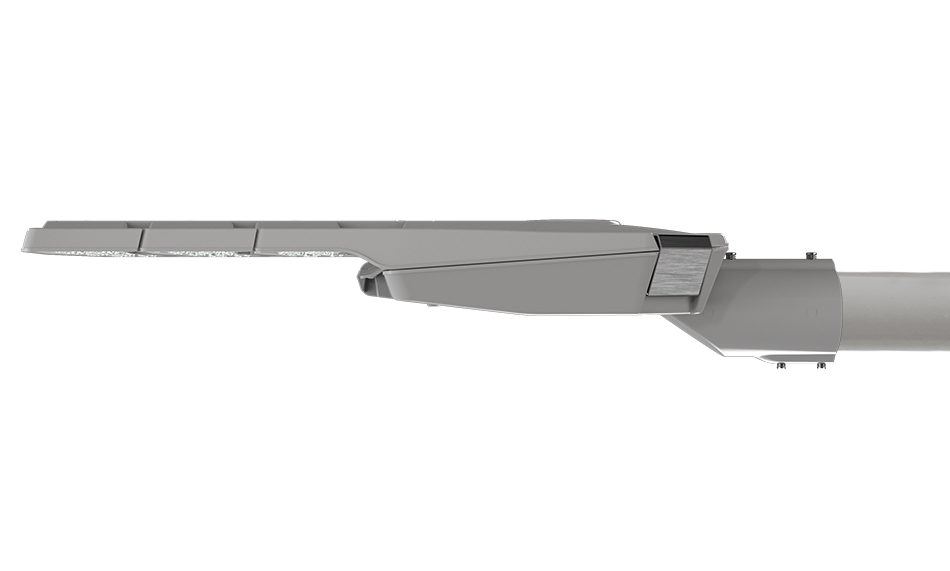

Holophane V-Max is a state of the art road lighting luminaire. Ultra-low profile design combined with a patented modular chevron light engine concept built in system sizes. High pressure die-cast marine grade LM6 aluminium body, spigot adaptor and chevrons (EN 1706 AC-44100). Extruded 6063-T6 Aluminium spine. Finished with a TGIC-free polyester powder coating. The luminaire shall be sealed to IP69 and rated to IK07. Suitable for either Post-top or Side-entry mounting with ability to adjust on-site by -10° to +10° tilt in 2.5° increments. Hinged canopy design with integrated locked service position allowing fast and safe installation and maintenance. The canopy has provision for the inclusion of an anti-fall device. Preliminary CIBSE TM66 (CEAM) Rating: 2.8 - Excellent Circularity. If not supplied with factory fitted flying lead, only use flex cable diameter from 6mm to 13mm. International Dark-Sky Association Approved (colour temperatures 3000K or warmer are approved under the IDA).

 Copy specification to clipboard

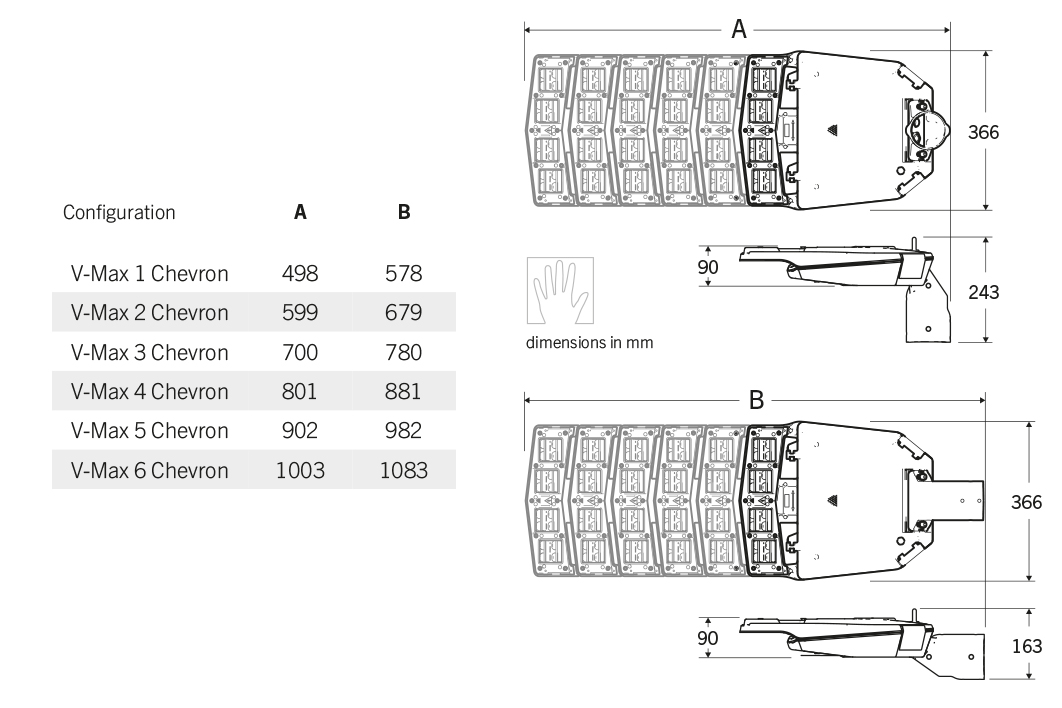

Dimensions

Related Products

R-Line

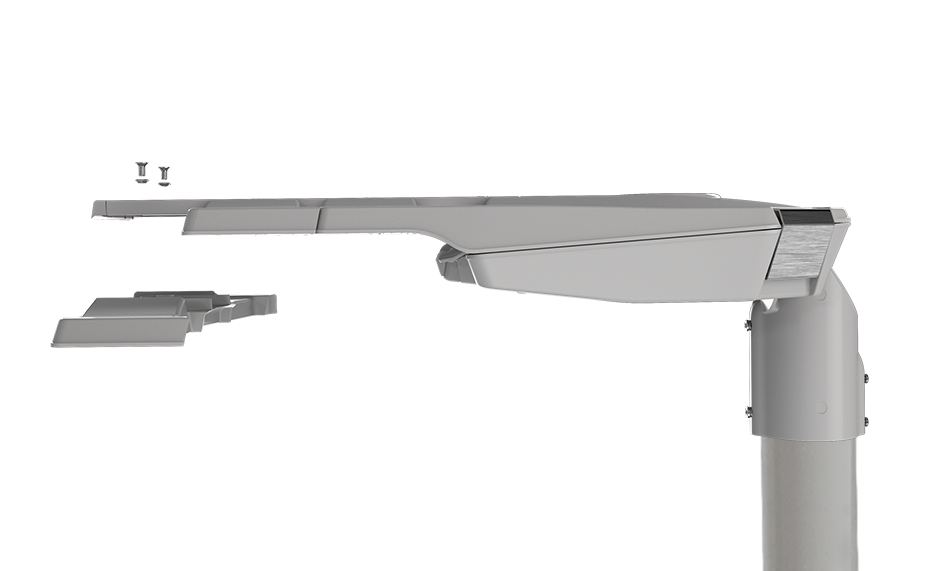

Post-top
