Holophane - D-Series Parking Garage

Photometry Filter

Lumen

Colour Temperature

Power

Distributions

Square Medium

Square Narrow

Square wide

Lumen (lm)	Colour Temperature (K)	Distribution	Power (W)	Efficacy (llm/W)
5,808	4,000	Square Medium	46	125
6,789	4,000	Square Medium	53	125
8,557	4,000	Square Medium	67	125
8,019	4,000	Square Medium	74	125
11,564	4,000	Square Medium	107	125
5,783	4,000	Square Narrow	46	125
6,761	4,000	Square Narrow	53	125
8,521	4,000	Square Narrow	67	125
7,986	4,000	Square Narrow	74	125
11,516	4,000	Square Narrow	107	125
5,443	4,000	Square wide	46	125
6,362	4,000	Square wide	53	125
8,019	4,000	Square wide	67	125
7,516	4,000	Square wide	74	125
10,836	4,000	Square wide	107	125

Download all Photometry and BIM Data

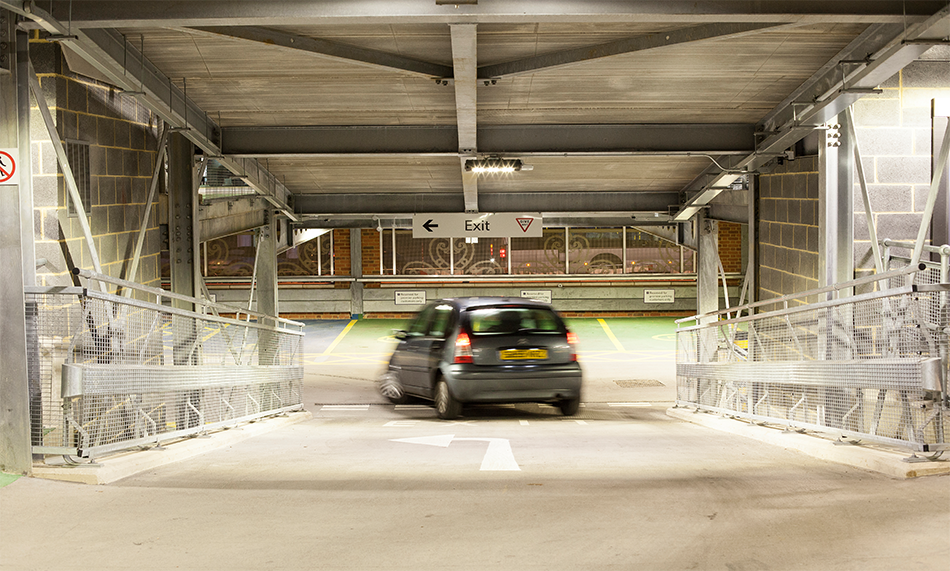

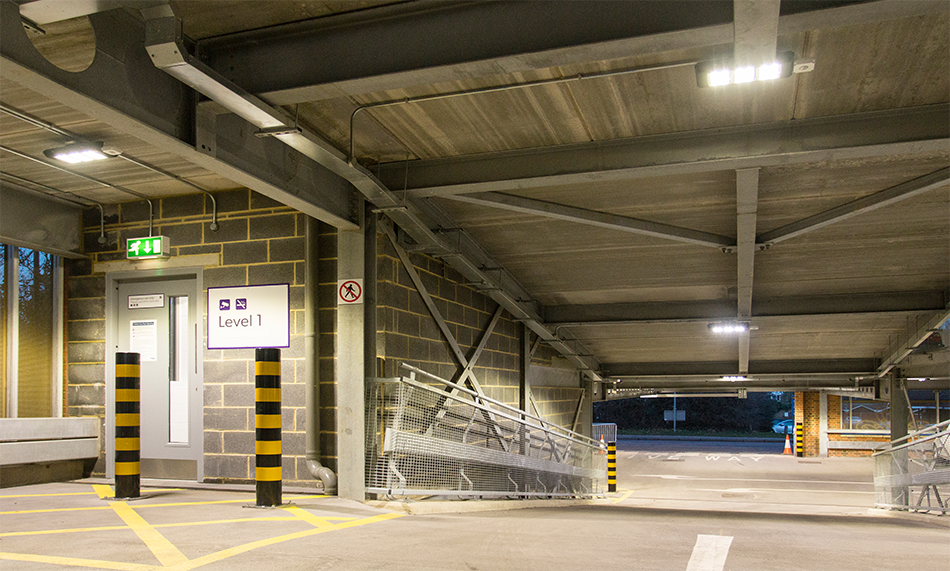

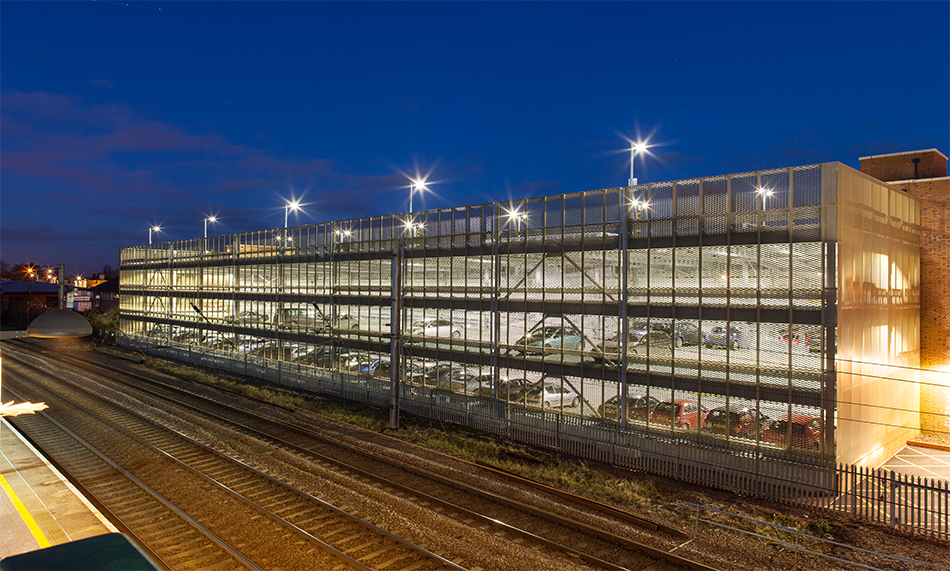

Gallery

Key Features

Please be aware that this product is currently being phased out and will be discontinued in September 2022.

The D-Series Parking Garage features advanced LED optics specifically designed for applications such as parking decks with low mounting heights to provide light distribution and effective security light levels.

The D-Series's diecast aluminium housing acts as its primary heat sink. Its longitudinal fins employ conductive cooling techniques to dissipate heat away from the key LED components and driver that extends the life of the luminaire.
Light engine(s) consist of either 20 or 30 high efficacy LEDs (subject to chosen configuration) mounted to a metal-core circuit board to maximize heat dissipation and promote long life.
DSX LED Parking Garage luminaire is engineered to maximise heat dissipation. The luminaires highperformance LEDs are mounted to a metal core board and attached to a die cast aluminium heat sink for effective conductive cooling.
Light engine(s) consist of 10 high efficacy LEDs that utilse conductive coolling to promote a LED module life that can be 100,000 + hrs at 20°C.

Delivering a three year payback when compared to equivalent flourescent luminaires and extending maintenance intervals.
Three precision-engineered optics created specifically for the parking garge application that deliver light exactly where it is needed.

Three hours emergency option available.
Integrated presence detector option available to dim the luminaire when area is unoccupied.

Applications

Internal

Carpark

Distribution

Specification

Two piece die-cast aluminium housing, that conforms to EN1706 AC-46500,

with integral heat sink fins to optimise thermal management through conductive and convective cooling. The LED drivers are mounted in direct contact with the casting to promote low operating temperature and long life.

Precision moulded acrylic lenses integrated onto an LED board that is IP65 and modular in design allowing for future light engine upgrades. Luminaire housing is completely sealed against moisture and environmental contaminants (IP65). Installation is via the mounting bracket that accommodates a variety of bezer box variants.

Copy specification to clipboard

Dimensions

Note: The specifications of the Holophane luminaire represents typical values. All descriptions, illustrations, ,drawings and specifications in the Holophane catalogue and website represent only general particulars of the goods to which they apply and shall not form part of any contract. The company reserves the right to change specifications at its discretion without prior notification or public announcement.

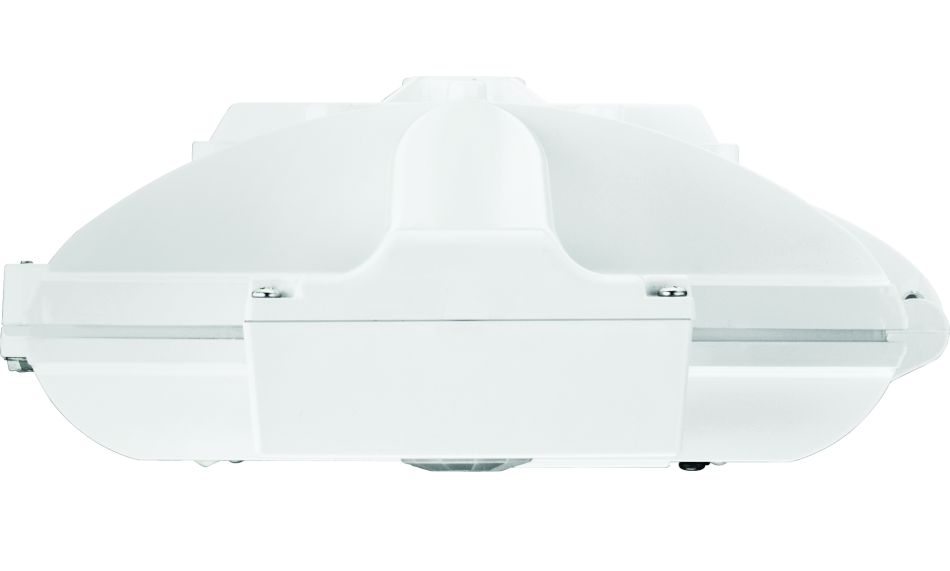

D-Series Parking Garage

Product code: DPG.2

Please be aware that this product is currently being phased out and will be discontinued in September 2022.

Energy efficiency, high quality lighting and controllability are all combined in the D-Series LED Parking Garage.

Lumen	6,000 - 8,000
Power consumption	46 - 67
Distributions	3
IK Rating	IK08
IP Rating	IP65
Colour range	4,000
