CSVT

Photometry Filter

Lumen (lm)Colour Temperature (K)DistributionPower (W)Efficacy (llm/W)IESBIM
2,0164,000Symmetric Distribution13155
3,0034,000Symmetric Distribution21155
4,0084,000Symmetric Distribution28155
5,0114,000Symmetric Distribution36155
5,9984,000Symmetric Distribution45155
7,0164,000Symmetric Distribution53155
Download all Photometry and BIM Data

Key Features

CSVT is suitable for a wide range of applications, even in the most demanding of environment. The CSVT design allows for fast installation, long system life and easy maintenance.

For added lighting control and increased energy savings, CSVT is available with a tiered range of integrated controls solutions. From simple on/off PIR control through to Cloud-based control and reporting systems.

Overall CSVT offers a comprehensive solution to suit different commercial needs.

CSVT can withstand corrosive environments due to its polycarbonate body and diffuser construction. The Stainless steel latches and brackets also are suitable for these environments. For enhanced protection plastic latches are also available as an option.

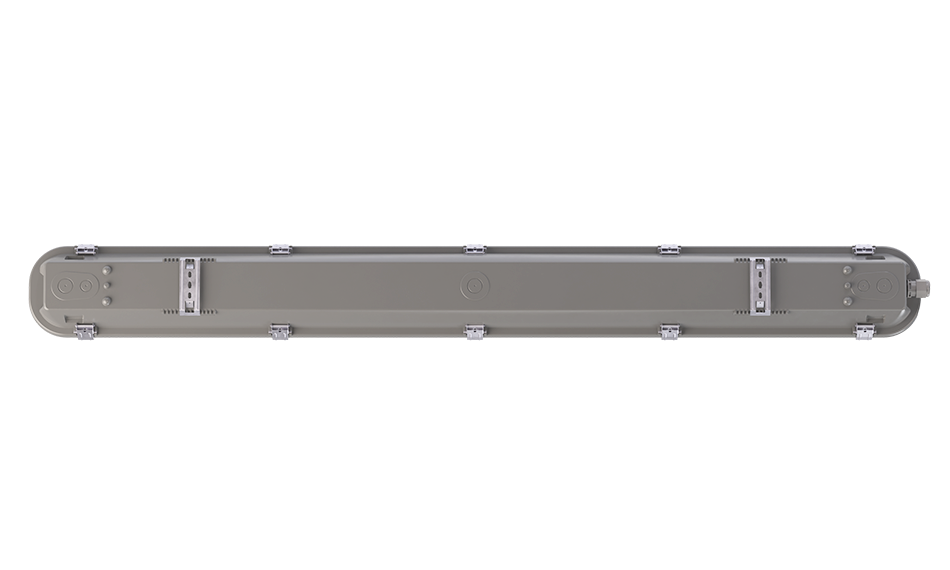

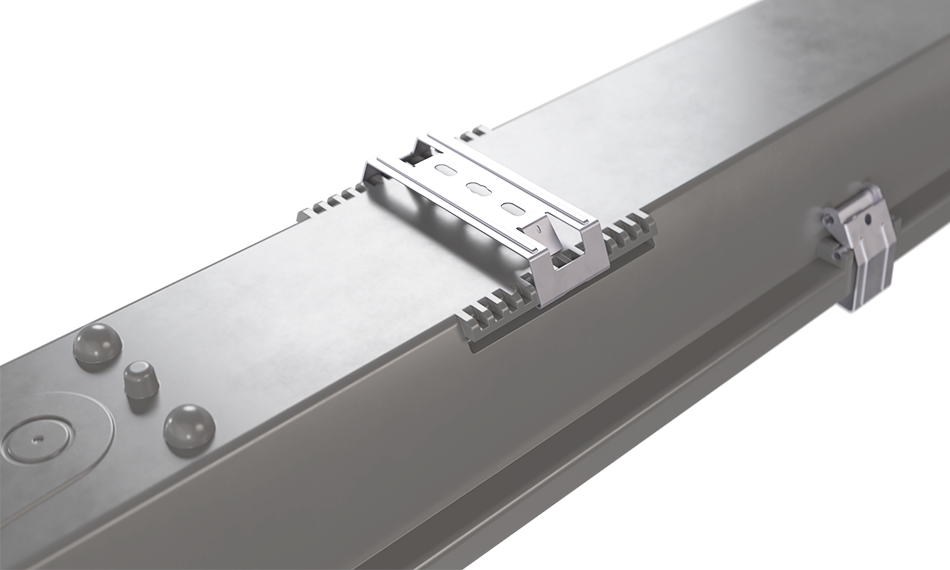

CSVT features two stainless steel mounting brackets that allow for surface or suspension mounting (suspension kit sold separately). For surface mounting simply secure the brackets to a surface and clip the batten into the brackets.

CSVT has multiple entry points to allow for flexible power termination. As standard CSVT comes with a M20 cable gland. CSVT can be easily drilled at marked areas on the body to allow through cable entry through the top or sides.

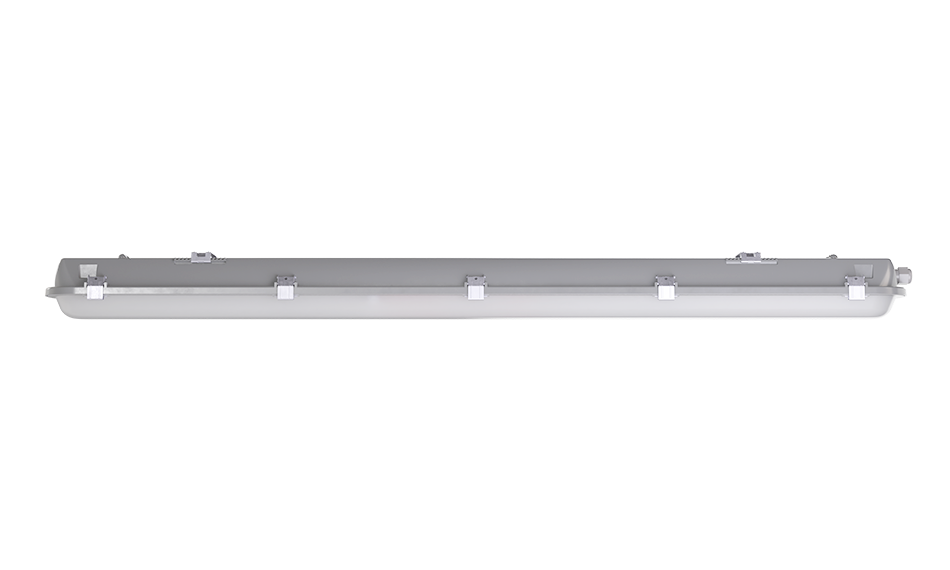

CSVT comes standard with a frosted polycarbonate diffuser producing a symmetric distribution.

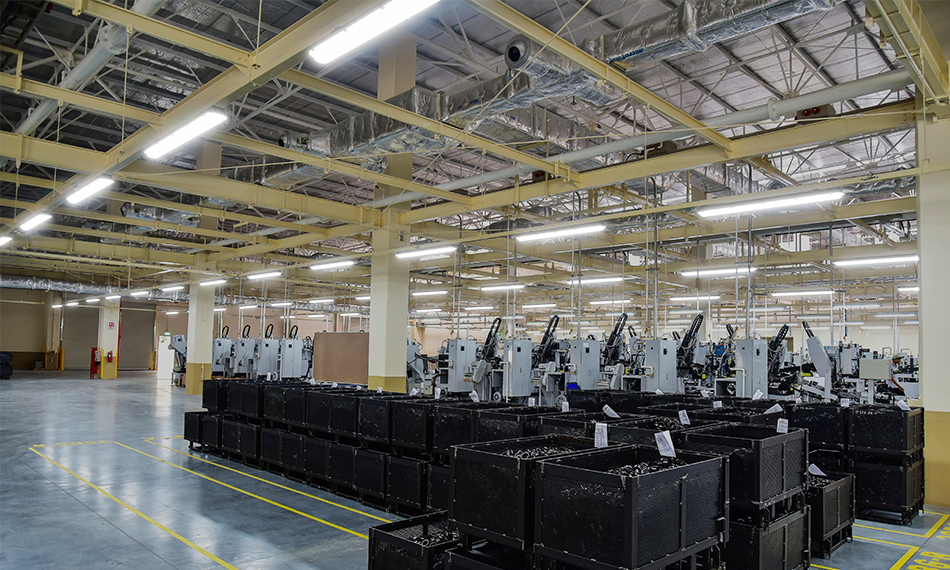

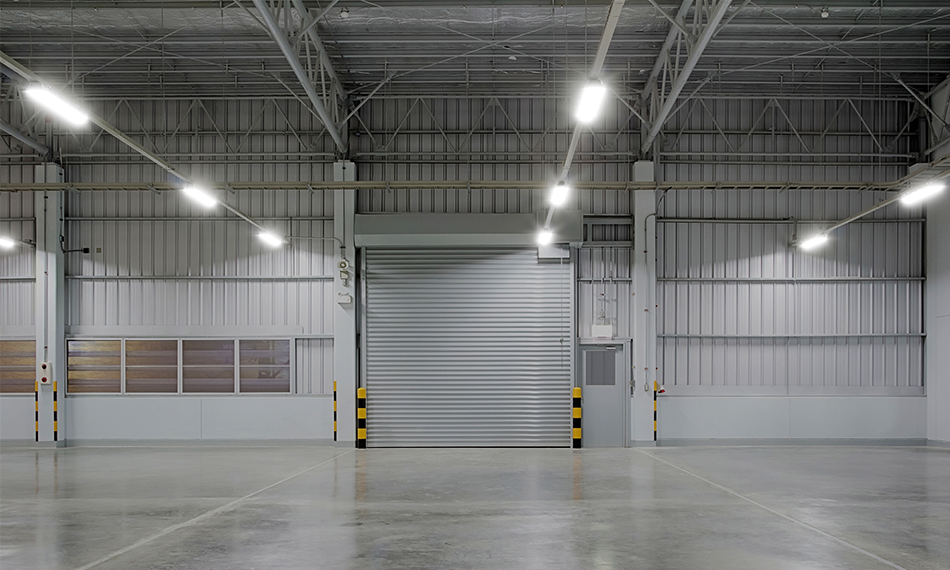

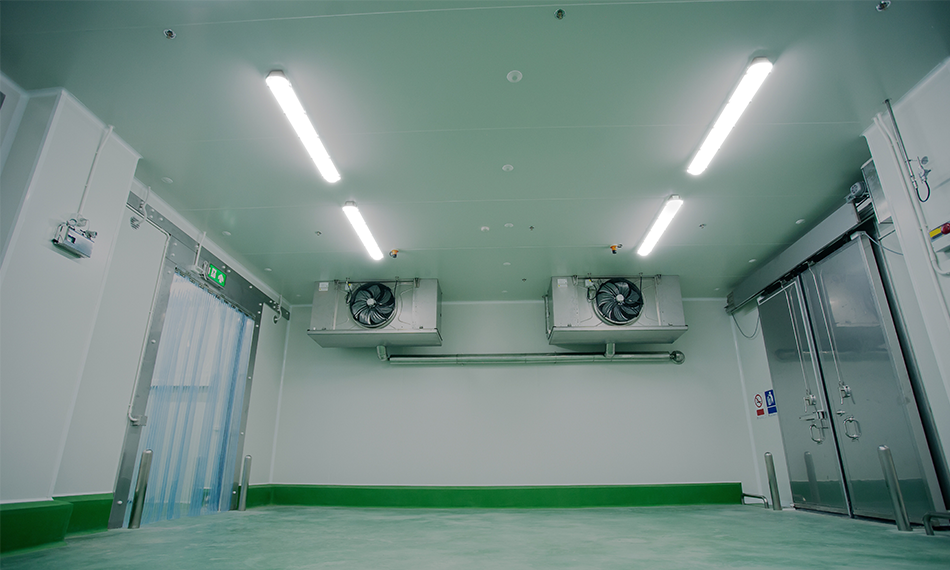

Applications

Distribution

Specification

Holophane CSVT LED linear batten shall consist of a 1200mm polycarbonate housing which features a ‘poured in place’ polyurethane gasket and a frosted polycarbonate lens. The luminaire shall be sealed to IP65 and rated to IK09. CSVT can be either ceiling or surface mounted. Cable termination is via a factory fitted side-entry M20 cable gland with cut-out areas for top entry termination (suitable sealing provided by others). The design allows for fast installation via the stainless steel brackets and stainless steel latches that allow quick access for easy maintenance. Preliminary CIBSE TM66 (CEAM) Rating: 2.2 - Definite/substantial progress to circularity.

 Copy specification to clipboard

Dimensions

Note: The specifications of the Holophane luminaire represents typical values. All descriptions, illustrations, ,drawings and specifications in the Holophane catalogue and website represent only general particulars of the goods to which they apply and shall not form part of any contract. The company reserves the right to change specifications at its discretion without prior notification or public announcement.
