Holophane - MICRO MENHIR

Photometry Filter

Lumen

Farbtemperatur

Power

Lichtverteilung

1 Finestra 220-240V 50/60Hz

2 Finestre 220-240V 50/60Hz

Lumen (lm)	Farbtemperatur (K)	Lichtverteilung
255	3,000	1 Finestra 220-240V 50/60Hz
500	3,000	2 Finestre 220-240V 50/60Hz
265	4,000	1 Finestra 220-240V 50/60Hz
520	4,000	2 Finestre 220-240V 50/60Hz
340	3,000	1 Finestra 220-240V 50/60Hz
665	3,000	2 Finestre 220-240V 50/60Hz
355	4,000	1 Finestra 220-240V 50/60Hz
690	4,000	2 Finestre 220-240V 50/60Hz
340	3,000	1 Finestra 220-240V 50/60Hz
665	3,000	2 Finestre 220-240V 50/60Hz
355	4,000	1 Finestra 220-240V 50/60Hz
690	4,000	2 Finestre 220-240V 50/60Hz

Laden Sie alle Photometrie- und BIM-Daten herunter

Galeriebild

Schlüsselbeschreibung

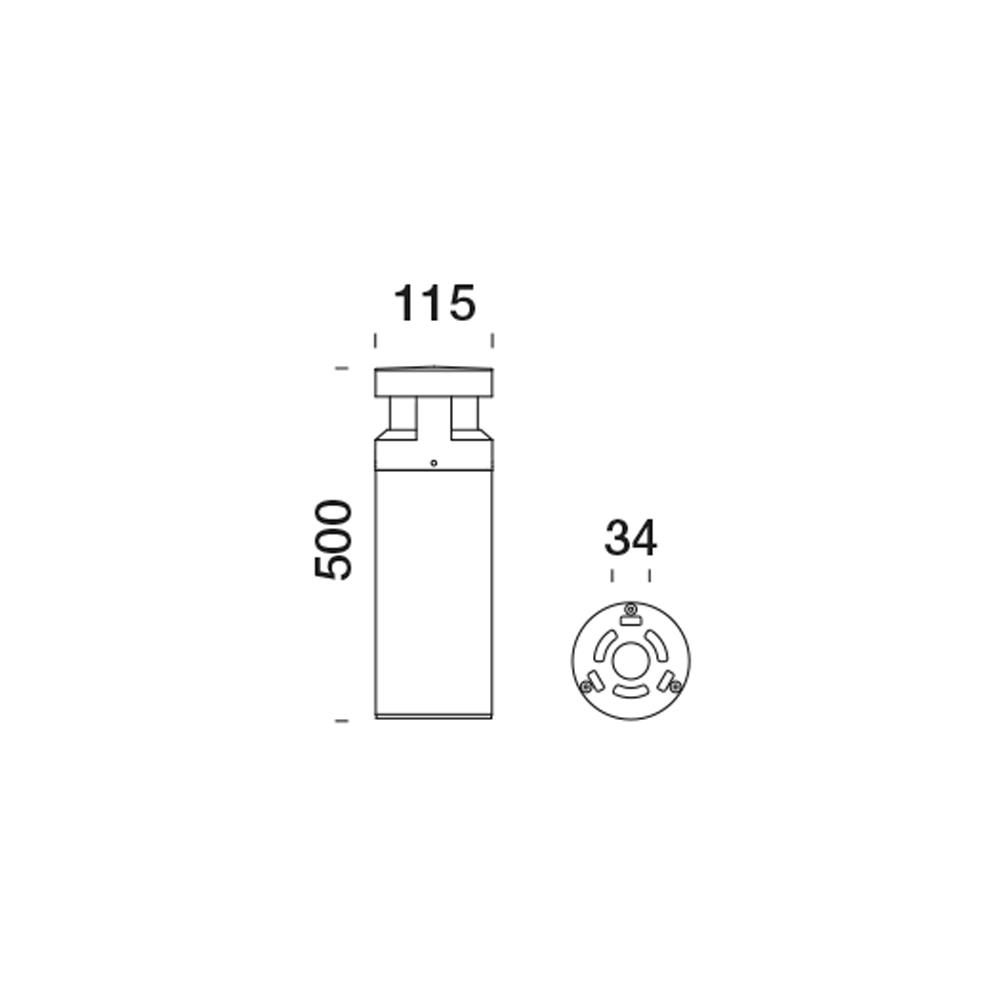

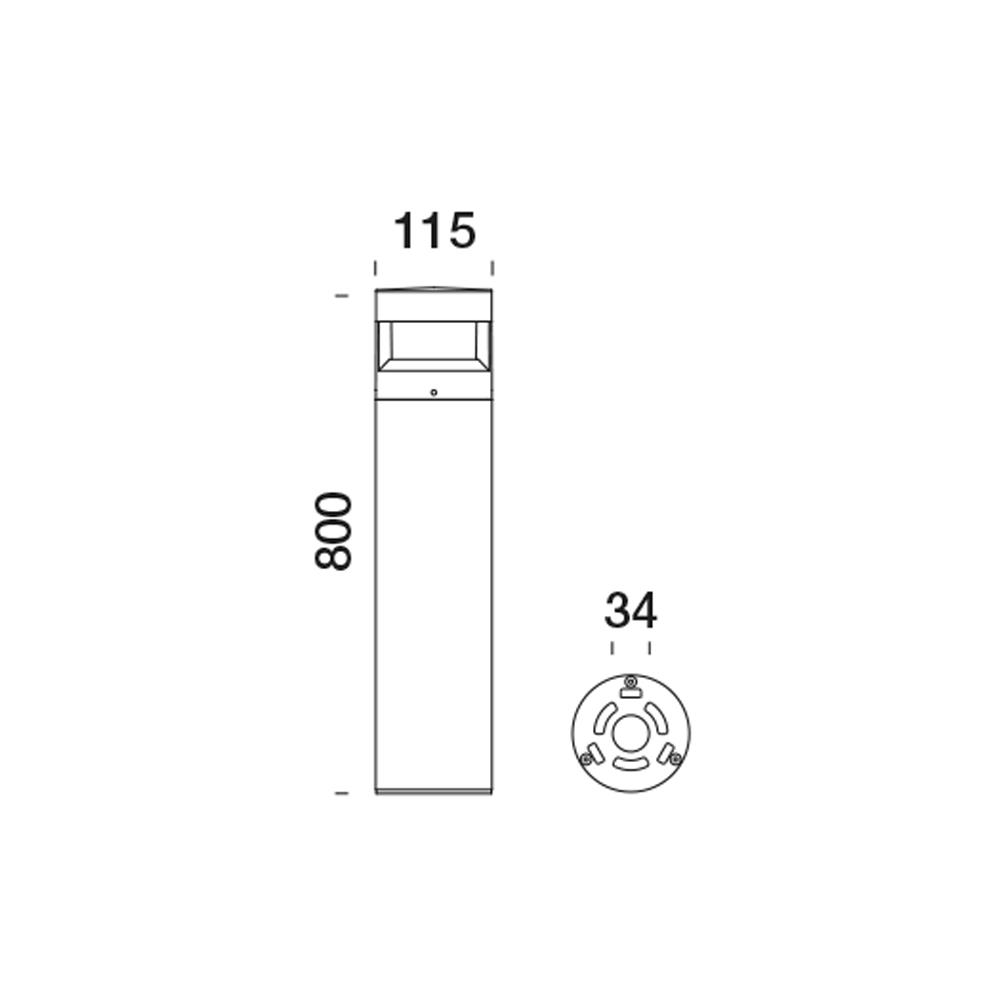

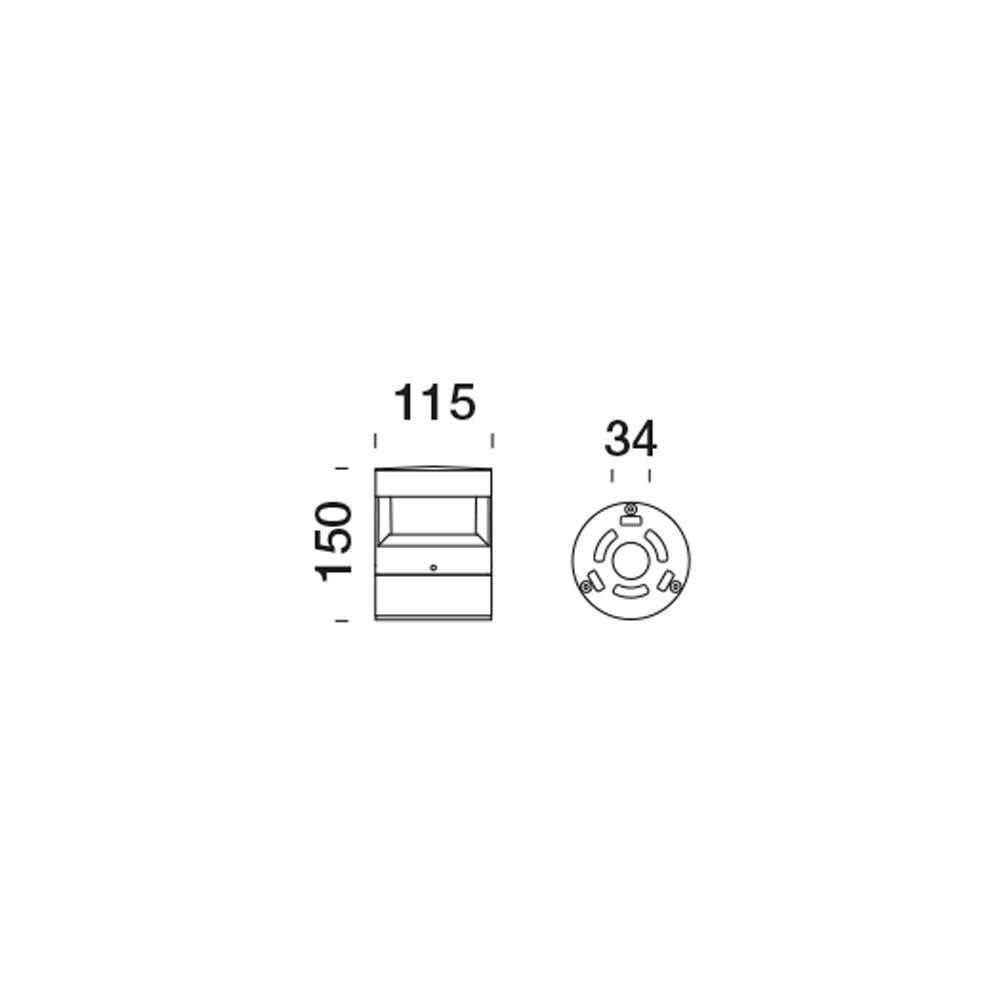

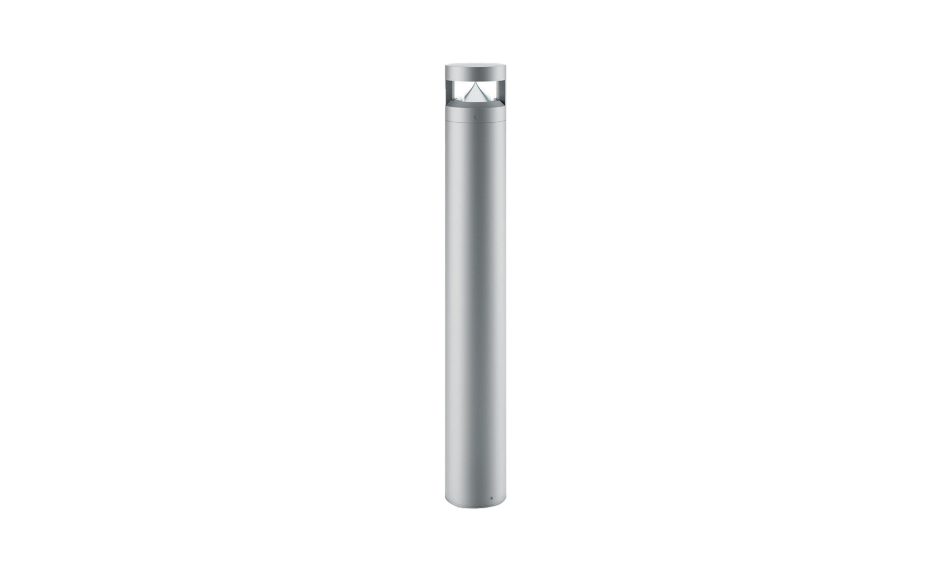

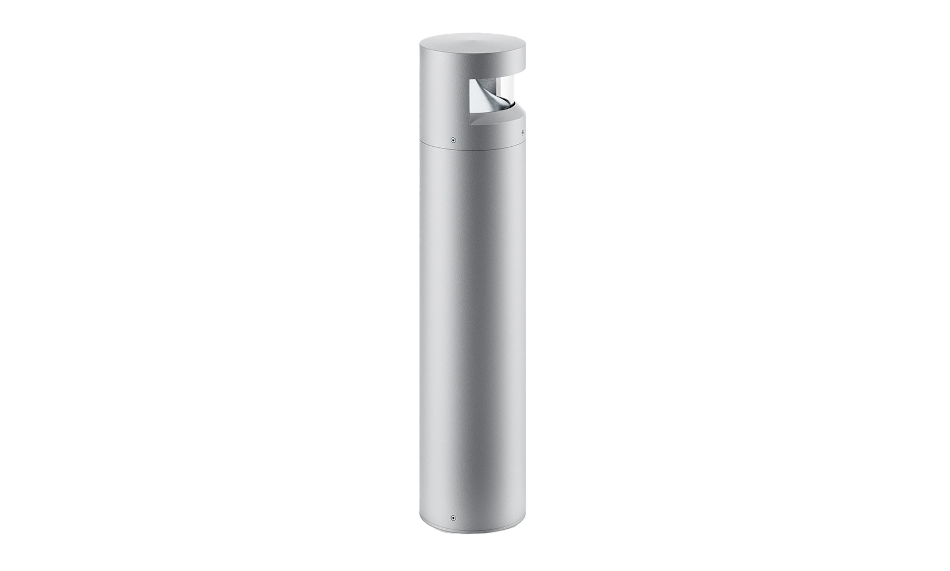

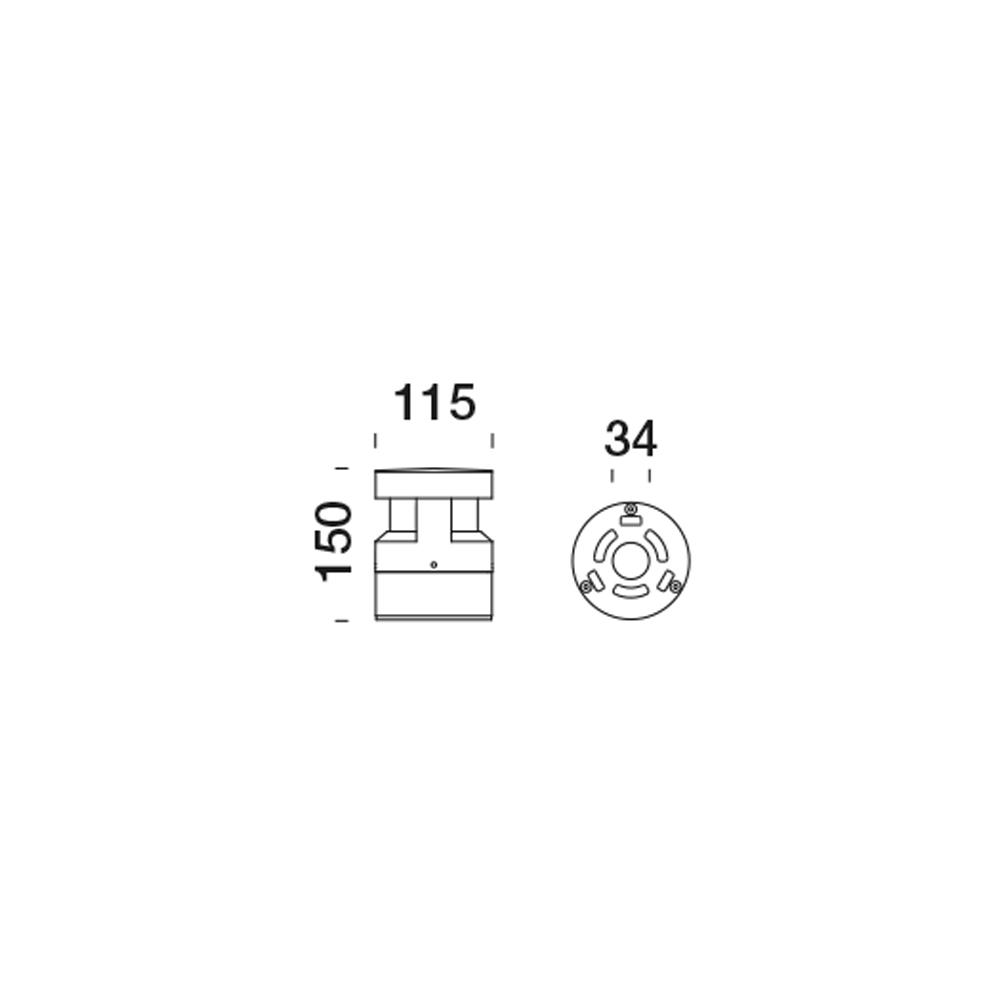

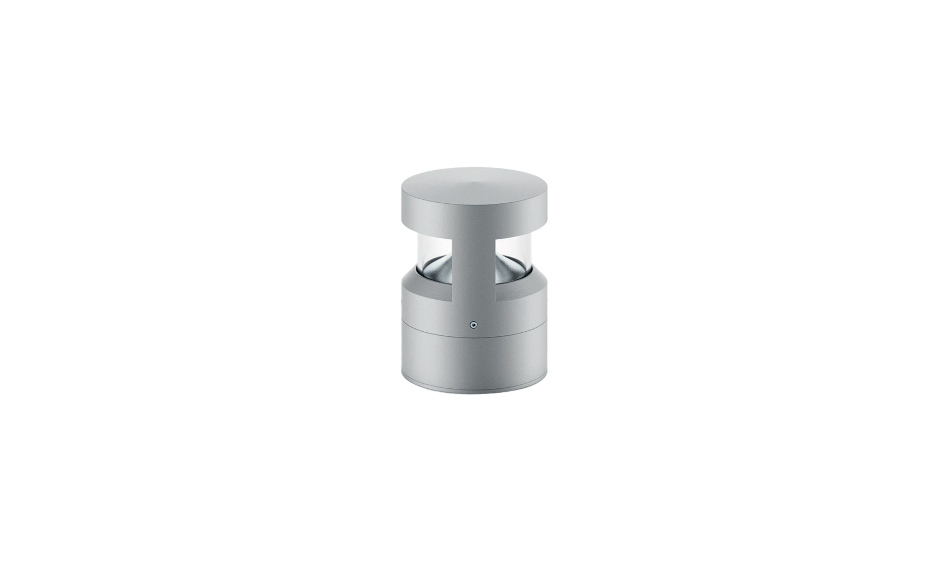

A very effective graphic gesture: a cylindrical base supports the diffuser that, when switched on, reproduces the circular shape of the body on the surface where it is installed. MENHIR is the version from the greater dimensions, more apt to public spaces, while MICRO MENHIR is perfect for private gardens and parks. It is available in three heights and with light distribution on 180° and 360°.

Anwendung

Extern

Wohnungssektor

Öffentliche Räume

Lichtverteilung

Spezifikation

Extruded aluminium alloy body. Die-cast head made of aluminium alloy with very low copper content. A4 Stainless steel screws. The product is subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and finally fixing. Subsequently the product is painted by performing a double pass in-line process, which allows you to generate a single thick protective layer which then generates barrier against atmospheric agents and UV rays. This allows to achieve corrosion resistance performance in salt spray.
